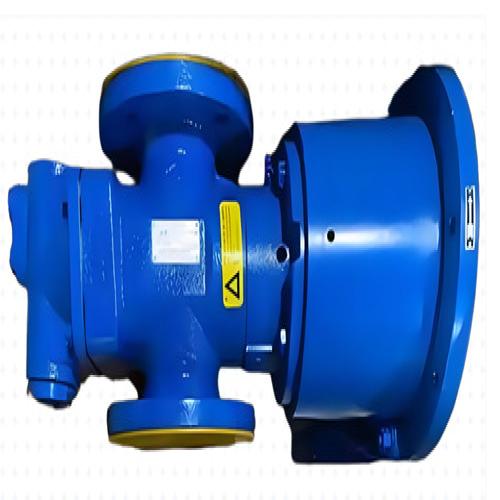

ACF025 Marine triple screw pump for oil supply, transfer, circulation, booster Description

ACE marine boiler fuel supply transfer pump, triple screw pump
1、 Overview: Flow rate: 10 to 180 L/min/50HZ, maximum pressure difference: 16 bar,
applicable range: oil supply, lubrication, circulation, transportation,
pressurization
2、 Purpose:
ACE pumps can be used for various fluid media, such as lubricating oil, fuel,
vegetable oil, hydraulic oil, as well as other hydraulic fluids, ethylene glycol,
polymers, emulsions, and any non corrosive fluid with certain lubricating
properties.
3、 Application:
Lubrication of diesel engines, gears, gas/steam turbines, hydraulic turbines, paper
machines, etc.
Cooling and filtering of large machinery and hydraulic systems, pumping transformer
insulation oil into transformers.
Transport by barge on ships, oil plants, refineries, and oil tank yards.
Provide fuel supply for diesel engines.
parameter
1. Output pressure: The maximum export pressure is 16 bar.
2. Displacement /capacity
Unit: cubic decimeters per revolution
Size 025L 025N 032L 032N 038K 038N
Displacement 0.0098 0.0139 0.0206 0.0291 0.0388 0.0491
3. Pressure relief valve
The pump is equipped with a pressure relief safety valve with an internal circuit
to prevent excessive pressure difference between the inlet and outlet of the pump
when the outlet pipe is blocked, in order to protect the pump. This valve can be
adjusted to different opening pressures. The limit value of the pressure relief
safety valve can be set at the factory and adjusted during installation
The maximum back pressure depends on factors such as pump size, speed, and fluid
viscosity, and generally does not exceed 4 bar. Based on this characteristic of the
valve, it can be used as a pressure regulating valve in situations where pressure
regulation requirements are not very strict. The maximum pressure setting is 16
bar.
4. Drive
The ACE pump is designed to be connected to the motor through an elastic coupling.
5. Maximum speed
The maximum speed is 3600rpm
6. Rotation direction
The standard design of ACE pump is unidirectional rotation, which means it rotates
clockwise facing the shaft end
7. Fluid viscosity and temperature
NVBP type 1.6-800CST -20c to 110c
NTBP type 1.6-1500CST -20c to 155c
NQBP type 1.6-1500CST+5C to 155C
8. Noise level
Under standard drive configuration, the normal noise level of the pump is 58
decibels. This value was determined according to the ISO-3741 standard in a
development space environment with an outlet pressure of 5 bar, a rotational speed
of 2940rpm, and a viscosity of 40cst
9. Materials
NVBP NTBP NQBP
Pump body ductile iron
Active screw surface treated steel
Driven screw: surface treated pearlite cast iron
Shaft seal end face sealing material graphite/stainless steel end face sealing
material silicon carbide/silicon carbide/silicon carbide with sealing protection
system
Auxiliary sealing material: rubber
10. Installation
The ACE pump is connected to the motor through flanges and elastic couplings, and
can be installed horizontally or vertically through angular bracket.
