• Model Number: 1W2.5-120
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 500Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

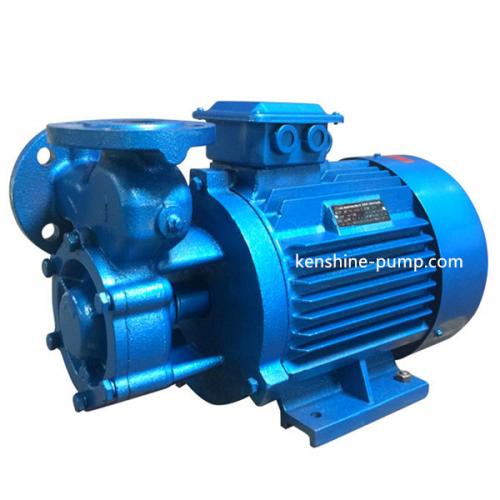

1W2.5-120 W single stage vortex pump Description

W Single stage vortex pump

Pumped liquids (clean water or other liquid like water)

W single-stage direct-connect vortex pump is used for pumping water or other liquids with physical and chemical properties like water. Liquid temperature is less than 60.

Vortex pump is often used in boiler feed water, shipbuilding, textile, chemical, metallurgy, machinery manufacturing, aquaculture, fixed fire control voltage, heat exchange unit and remote sprinkler irrigation agriculture departments and has a wide range of applications

Features

Vortex pump is a kind of vane pump with small flow and high lift. It has low efficiency and steep drop in performance curve. Compared with other vane pumps, vortex pump is of different structure. Simple, small size, light weight, with self-priming ability or with the help of a simple device to achieve self-priming.

Structure:

Vortex pump is Suitable for transporting clean liquid without solid particles with viscosity less than 15°E.  It is mainly composed of impeller, pump body, pump cover and so on. The annular flow is formed between Pump body and impeller. The liquid is sucked from suction port and obtains energy through the rotating impeller and then is discharged from discharge outlet. There is a partition between suction and discharge outlet, and there is a small gap between the partition and impeller.

Performance

Flow: 1.44-14.4m3/h

Head:25-120m

Motor power:0.75kw-11KW

Caliber: 25mm-65mm

2900rpm/1450rpm

Application:

Chemical industry, petroleum, light textile, electric power and other factories and mines of industrial production of water, boiler feed water, heating water supply, high-rise buildings, firefighting, heat cycle water supply, manufacture of frozen heatstroke cooling drinks and canteen, food disinfection high pressure water supply and other applications
