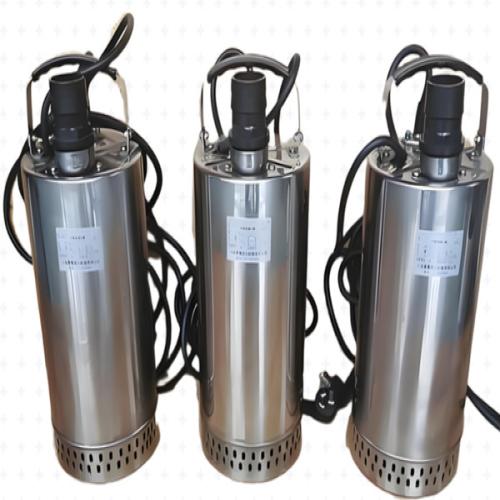

QDN1.5-7-0.12 QDN,QN Portable stainless steel submersible pump Description

QDN single-phase built-in stainless steel submersible pumps, primarily made of 304 or 316L stainless steel. It has a compact size and excellent rust-resistant and corrosion-resistant properties, commonly used for liquid transportation in households and small-scale industrial fluids transportation /conveying.

Features:

1. Power supply type: QDN represents single-phase power (220V). The shaft seal adopts a wear-resistant mechanical seal, suitable for full head operation. The single-phase pump is equipped with an internally installed automatic thermal overload protector. For three-phase power supplies, it is typically marked as QN

2. Structural Form: It is an internal-enclosed submersible pump, with the motor stator winding using high-temperature hot water-resistant wires and the pump body bearings designed for high temperatures, capable of pumping hot water below 100°C

Material Selection: The entire component is made of stainless steel casting. 304 material is suitable for media with a pH range of 4 to 10, while 316L material is suitable for strong acid, alkali, or seawater environments with a pH range of 0 to 12.

Application:

Home Life: Suitable for household vehicle washing, garden irrigation, micro water discharge, bathtub aeration and water supply, and water cycle delivery for garden scenic spots.

Industrial field: Widely used for hygienic fluid transportation in industries such as pharmaceuticals, food, and chemicals, as well as laboratory water sampling

Special Environments: Suitable for hot spring bathing, residential heating, geothermal water extraction, and fountain engineering. Its corrosion-resistant properties make it ideal for industries such as chemical processing, dyeing, and electroplating

Remarks: This pump can not be used for operating flammable or other hazardous liquids, and the submersion depth generally should not exceed 5 meters
