• Model Number: 150PW300-14-22kw
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

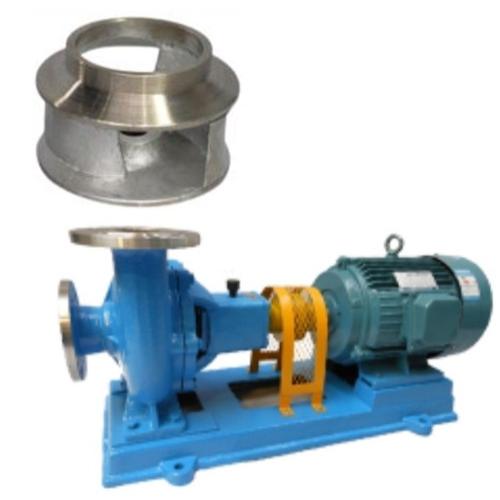

150PW300-14-22kw PW,PWZ horizontal centrifugal wastewater sewage drainage pump Description

PWZ impurity sewage pump with a large flow channel impeller can transport sewage with acidic, alkaline or other corrosive properties at temperatures below 80 ℃, and is widely used in industries such as chemical, petroleum, light industry, food, pharmaceutical and environmental protection. Its performance range: flow rate Q is 10~125m3/h, head H is 10~18m, and the material of the overcurrent components includes ZG1Cr18Ni9 and HT200.

Product Features

PWZ pump is a single-stage, single suction, cantilever corrosion-resistant centrifugal sewage pump. The pump suction port is in the axial horizontal direction, and the pump suction port can be installed in a horizontal or vertical direction as needed.

The structure of PWZ pump is shown in the figure, which mainly consists of pump cover (1), pump casing (2), impeller (3), shaft seal (4), shaft (5), and bracket (6) and other components. The shaft seal adopts a novel double end mechanical seal structure. The pump and electric motor are installed on a common chassis and are directly driven by the electric motor through an elastic coupling. When viewed from the electric direction, the pump should rotate clockwise
