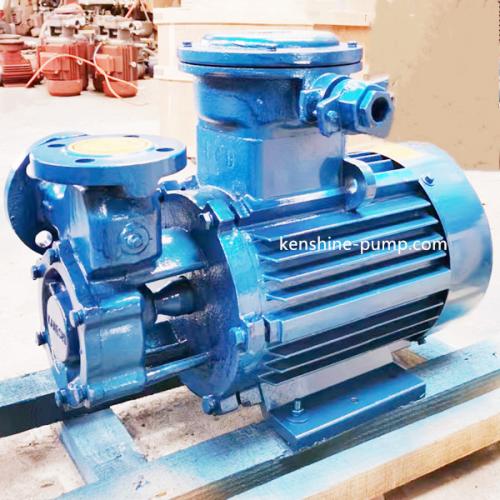

2W12-250 W high-head vortex water pump Description

High head Vortex pump

Vortex pump is a vane pump. It mainly consists of impeller, pump body and pump cover. Impeller is a circle disk, on the circumference of the blade radial uniform arrangement. The pump body and impeller form an annular flow passage, inlet and outlet are in the outer circumference of the impeller. There is a clapboard between the suction inlet and the exhaust outlet, thus separating the suction inlet and the exhaust outlet. (bronze impeller)

W type high head vortex pump is widely used in shipbuilding, light textile, chemical industry, metallurgy, machinery manufacturing, aquaculture, fixable, wheel mobile fire control pressure, heat exchange unit, brewing, refrigeration, water heating installation pressure test, high-rise building water tower washing, under construction maintenance, agricultural remote sprinkler irrigation and other industrial and agricultural departments. If equipped with frequency conversion device, it can be used as metering pump.

W type high head vortex pump is used for suction and delivery of clean water and other liquids with physicochemical properties similar to water. The temperature of the liquid used shall not exceed 80℃.
