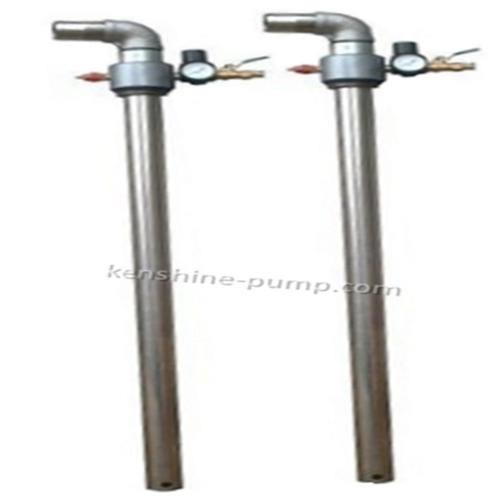

SQZ40 SQZ pneumatic oil barrel pump Description

SZQ pneumatic oil barrel pump (drum pump) can be directly inserted into the material barrel to pump the liquid. SZQ pneumatic oil barrel pump can transport a variety of oil, general corrosive chemicals and other liquids.

According to the liquid nature of the transmission, the wet part of pump body can be made of aluminum alloy, stainless steel, 316 stainless steel etc.

SZQ pneumatic oil barrel pump can transport oil, beverage and other liquid. The pump is widely used in chemical, petrochemical, fine chemical, dye chemical, environmental protection, water treatment, medicine, food and other departments etc.

It is also an ideal tool for transporting gasoline, kerosene, diesel and light fuel oil to small and medium-sized oil fields, oil depots, oil refineries, gas stations, agricultural machinery stations, enterprises and institutions, motorcade, vehicles and ships.

SZQ pneumatic barrel pump parameters:

Szq-40 pneumatic barrel pump

Model no. : szq-40 (stainless steel)

Air pressure :4 kg

Input air pressure hose: Φ 8 mm

Flow: 70-80 l /min

Head: > 4 meters

Inlet: outer diameter 40mm

Outlet: outer diameter :40 mm

Net weight: 3.6 kg

SZQ pneumatic barrel pump application:

SZQ pneumatic oil barrel pump is powered by compressed air to extract liquids in various devices. The pump is especially applicable to pump the inflammable, explosive and volatile oils and solvents. The pump has the advantage of light weight, convenient operation, fast pumping speed, safe and reliable transportation etc.



pneumatic   barrel pumpModelAir   pressureDischarge   pressureWorking   pressureAir   hose diameterPump   outletSZQ-25≥0.10Mpa≤0.025 Mpa0.03 MpaΦ8mm25mmSZQ-4040mm

Flow rate	70-80L/MIN
Pressure	0.03MPA
pump material	aluminum alloy,stainless steel
