WQX12-72-7.5 Sewage submersible electric pump with high head up 80m Description

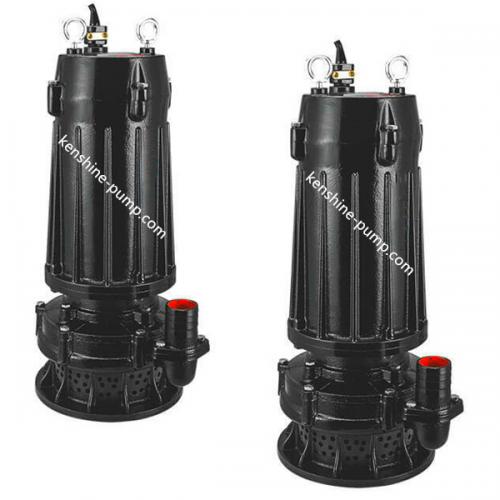

WQX Sewage submersible electric pump with high head

WQX sewage submersible electric pump is composed of water pump, seal and motor. The motor is located on the upper part of the electric pump. Motor is a single-phase or three-phase asynchronous motor. The water pump is located at the lower part of the electric pump, with a channel impeller and volute structure. Mechanical seals are used between the pump and the motor, and O-type oil-resistant rubber sealing rings are used as static seals at each fixed stop to ensure the reliability of the electric pump.

The electric pump rotor shaft adopts heat treatment process to ensure the shaft has more reliable mechanical strength, which can effectively improve the abrasion resistance and corrosion resistance of the shaft, and also facilitate the maintenance and disassembly of the impeller.

Application:

WQX Sewage submersible electric pumps are widely used in the industry, agriculture, mining, construction, municipal environmental protection and so on. It can be used for pumping liquids containing short fibers, paper scraps, such as silt solids liquids, solids or software such as mud, grey water, life wastewater, sewage, faeces and urine and so on. It is the enterprise ideal water conservancy irrigation and drainage, digging and site construction of equipment, but not to places that have requirements of explosion-proof requirements. Some specifications with channel impeller greatly improve the anti-blocking capacity of the pump. Some specifications are designed with full head theory so that the electric pump can run without overload under normal conditions, effectively prolonging the service life of the motor.

modelQ                 （m³/h）H                         （m）Frequency （Hz）Speed （r/min）Power （kW）Outlet （mm）Voltage （V）WQX6-25-1.16255028601.12380WQX8-30-1.58305028601.52380WQX10-34-2.210345028602.22380WQX10-44-3104450286032380WQX15-45-4154550286042380WQX15-55-5.515555028605.52380WQX12-72-7.512725028607.52380

flow rate	1-12m3/h
head	3-80m
pump material	cast iron or stainless steel
