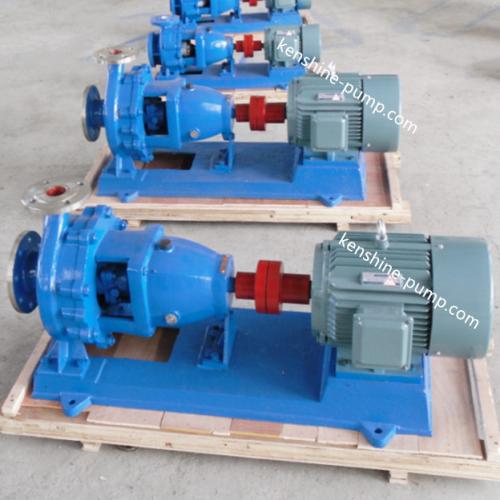

ISR65-40-200 ISR horizontal hot water circulation pump Description

ISR hot water circulation pump

Performance range:

Pump speed can be divided into two kinds: 2900rpm and 1450rpm

Structure: Horizontal

Maximum flow :240m3 /h, 400m3 /h

Maximum lift: 125 m, 55 m

Maximum operating temperature: ≤120° C

The maximum operating pressure of the pump is 1.6mpa

Pump description:

ISR type pump is a horizontal single stage hot water circulating pump is for suction and delivery of clean water and similar liquid of physical and chemical properties similar to water without solid particles. It is suitable for heating and boiler hot water circulation. This pump has simple structure, reliable performance, small volume, light weight, good cavitation resistance, low power consumption, easy to use and maintain. ISR type pump is universal with the whole series of 140 specifications and only four shafts. The shaft, bearing, shaft seal and impeller fastener of the same specification can be interchanged. There are only four kinds of suspension frame for the whole series of pumps.

This pump is rear open, disconnecting the pump cover and impeller does not require removal of suction and discharge pipeline. Two ball bearings are mounted in the suspension frame and lubricated with machine oil or grease. The pump is driven directly by an electric motor through an elastic coupling. The vortex chamber, foot, inlet flange and outlet flange are casted as a whole. Shaft seals are mechanically sealed with high temperature resistant double end faces

Conveyed medium:

Diluted, clean, non-corrosive, non-explosive clean water and liquids with physicochemical properties similar to water and containing no solid particles or fibers. It is suitable for heating and boiler hot water circulation

Application:

1. Hot water supply and suction, high temperature liquid pumping

2. Boiler hot water circulation

3. Pressurized hot water supply in the bath center

4. Solar water heaters and hot water supply

5. Hot water pumping in the hotel hot water circulation system

Model significance:

ISR65-50-160

ISR: hot water circulating pump

65: pump inlet diameter of 65mm

50: diameter of the pump discharge 50M

160: impeller diameter of 160mm
