• Model Number: IMC65-50-160
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

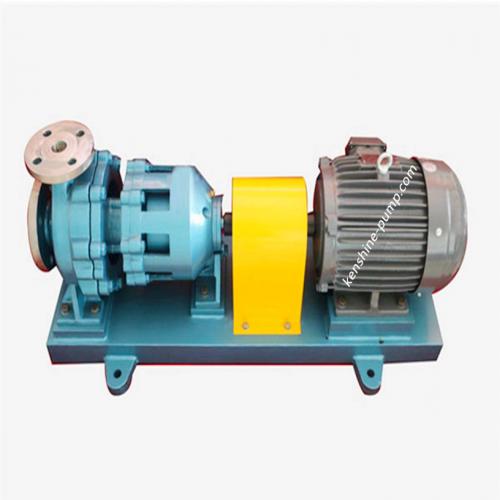

IMC65-50-160 IMC Stainless steel magnetic chemical process pump Description

IMC stainless steel magnetic chemical process pump

IMC magnetic chemical process pump is for single-stage single-suction cantilever no leakage pump. The pump is designed at the base of IH single stage chemical centrifugal pump according to ISO2858. The flow parts are made of SS304, SS316, SS316L, titanium etc. The pump and motor are connected by shaft coupling.  The pump is for back pull out structure.  When repair pump, it need not disassembly pipeline or motor. Only disassembly shaft coupling and then disassembly the rotor parts.

IMC magnetic chemical process pump is mainly used in petroleum industry, heavy chemical industry, dye, pharmaceutical industry etc. transport corrosive, toxic, inflammable, explosive, volatile, rare and precious etc. various corrosive liquids.

Flow: 1.8-400m3/h

Head:15-125m

Max. liquid temperature: 400Degree Celsius.

Max. pressure: 1.6MPA
