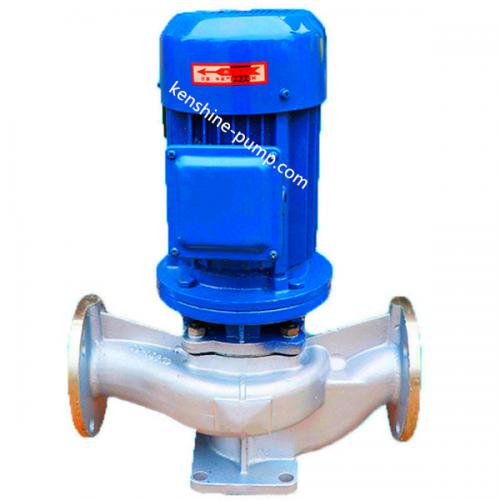

IHG50-200 IHG Stainless steel inline centrifugal pump Description

Vertical stainless steel pipeline centrifugal chemical transfer pump

Pump material and application

IHG type vertical stainless steel pipeline centrifugal pump is made of stainless steel (SUS304,SUS316,SUS316L etc.) The stainless-steel pump is used for conveying corrosive liquid without solid particles. The corrosive liquid is like water. IHG Vertical stainless steel centrifugal chemical transfer pump is widely used in petroleum, chemical industry, metallurgy, electric power, papermaking, food and pharmaceutical and synthetic fiber sectors. Liquid temperature is -20℃ to 120℃.

Features

Vertical structure with same inlet and outlet

Closed coupling between pump and motor, no vibration, low noise

Shaft sea: mechanical seal with high-quality

Convenient installation and maintenance, disassemble pump connection nut to open rotor parts

Pump can be used by series or parallel

Pump can be installed vertically or horizontally.

Performance range

Q: 2-2000m3/h

H: 2-125m

Caliber:20-500mm

Closed impeller, stainless steel pump material

Motor: Standard motor or explosion-proof motor

Model explanation:

IHG50-200

IHG: Vertical stainless-steel centrifugal pump

50: Pump inlet(50mm)

200: impeller nominal diameter(200mm)
