• Model Number: IHF80-65-160
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

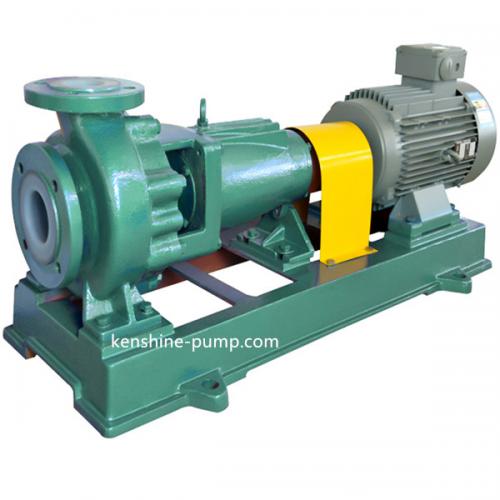

IHF80-65-160 IHF anticorrosion acid alkali transfer pump Description

luoroplastic lining chemical transfer pump

Single stage end suction centrifugal fluorine plastic lining pump is designed and manufactured according to national standard. Fluorine plastic centrifugal pump adopts molding press process with superior corrosion resistance. The flow components are made of fluorine plastic material (F46 / PTFE/FEP). Pump body adopts metal shell lined with FEP/F46/PTFE) and pump cover, impeller adopts fluorine plastic with metal insert.

Advantages:

Superior corrosion resistance, good wear resistance, high temperature resistance, not aging, high mechanical strength, smooth operation, advanced and reasonable structure, reliable seal performance, simple maintenance, long service life etc.

Pumped liquids:

sulfuric acid, hydrochloric acid, hydrofluoric acid, nitric acid, strong alkali, strong oxidizer, organic solvent, reducing agent and other strong corrosive fluids with arbitrary concentration.

Application:

IHF single-stage single-suction fluoroplastic centrifugal pump is widely used in chemical, pharmaceutical, petroleum, metallurgy, electric power, electroplating, pickling, pesticide, papermaking and other industries for liquid transportation, wastewater treatment and acid and other technological processes.

The pump can transport any concentration of sulfuric acid, hydrochloric acid, nitric acid, acetic acid, hydrofluoric acid, strong alkali, strong oxidant, organic solvent and other corrosive liquids. The pump is one of the current advanced corrosion resistance equipment.

Performance:

Flow range:1 to 400m3/h

Head: 3-80m

380v-415v, 3Phase/50HZ, 440V-460V,3Phase/60HZ

1450rpm, 1750rpm, 2900rpm, 3360rpm

Wet parts material: F46/FEP/PTFE

Motor and pump can be connected with close coupling or shaft coupling.
