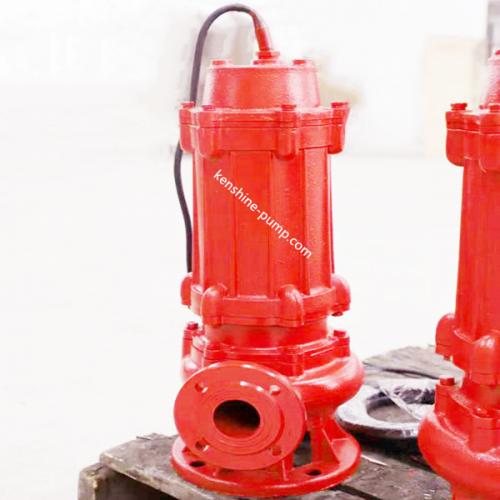

50WQR-15-30-3 High temperature wastewater lifting pump Description

WQR high temperature submersible sewage lifting pump is a high-quality high temperature resistant water pump produced by our company. It is widely used in enterprises and public institutions such as: bath center, residential heating, enterprises using geothermal energy power generation, extraction of underground high temperature hot water. The pump is suitable to convey high temperature liquid medium containing dirt, solid particles and fiber.

features

1, the seal use of alloy on silicon carbide can make the pump continuous safe operation.

2, the use of advanced hydraulic model, reasonable design, supporting the motor power is small, remarkable energy saving.

3. Compact structure, convenient movement, simple installation, no need to build pump room, reduce project cost.

4, the water level automatic control system, can automatically control the pump start and stop, without special care.

5. Equipped with electric control equipment, the pump can be automatically monitored for leakage, phase loss, overload, step-down pressure starting, etc.

6. It can be used with automatic coupling device to make installation and maintenance more convenient.

Performance

The diameter of discharge water is 25~200mm

Flow 10 to 200 m3 / h

Lift is 5 ~ 60 m

The power range is 0.75 kW ~15KW

The diameter of the passing solid particles is 15~35mm.

High temperature resistant motor (Grade H insulation);High temperature copper wire, Grade H insulation and high temperature resistant insulating paint

High temperature resistant cable, sealing ring, mechanical seal and NSK high temperature bearing imported from Japan. Temperature resistance up to 100 degrees

The mixing device is under the inlet and outlet. As the motor rotates, the mixing device also rotates to stir around, which can evenly the silt on the bottom and then discharge together with the water.
