• Model Number: 100FZB-30
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

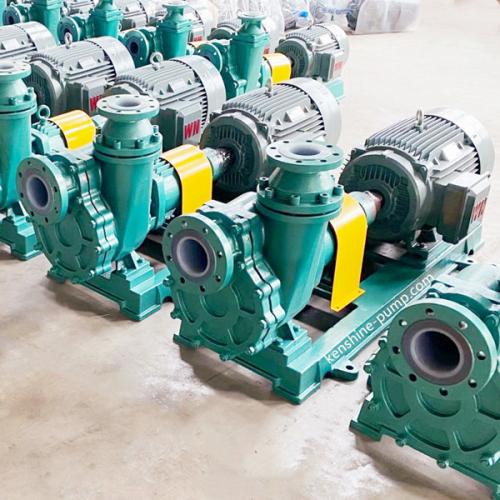

100FZB-30 FZB Fluoroplastic alloy self-priming pump Description

FZB fluorine plastic alloy self-priming pump

Pump material: FEP/PTFE/PFA fluoroplastic alloy with WB F4 External type bellows mechanical seal and suction height is for 3 to 4 meters without bottom valve.

The flow components of fluorine Plastic alloy self-priming pump is made of fluoroplastic alloy molding press. It has stronger mechanical strength, corrosion resistance, heat resistance than fluorine plastic self-priming pump.

Fluoroplastic centrifugal pump is for flow backward condition (liquid) into the pump chamber without external force.  Fluorine plastic alloy self-priming pump is for suction conditions (liquid within 3 meters) below the pump cavity.

Flow rate: 2 to 100m3/h

Head: 18-45m

Connector way: Closed coupling and shaft coupling.

Working principle

the pump body is operated in such a way as to discharge the gas in the pump chamber, so as to generate pressure, which makes the atmospheric pressure push the liquid in the low liquid tank into the inlet vacuum pipeline, and transport the materials to the designated position through the working principle of the centrifugal pump.

Pump is used to transport corrosive media or high-risk chemicals between -20℃ and 100℃.For example: hydrochloric acid, fuming sulfuric acid, hydrofluoric acid, concentrated nitric acid, phosphorus trichloride, phosphorus trichloride, caustic soda, calcium chloride, organic solvent, strong oxidant and so on. (HCL, H2SO etc)

Application

Urban environmental protection, construction, fire, chemical, pharmaceutical, dye, printing and dyeing, brewing, electric power, electroplating, papermaking, industrial and mining washing, equipment cooling, etc.
