• Model Number: FQW70-30W
• Brand Name: kenshine-pump.com
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 600sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

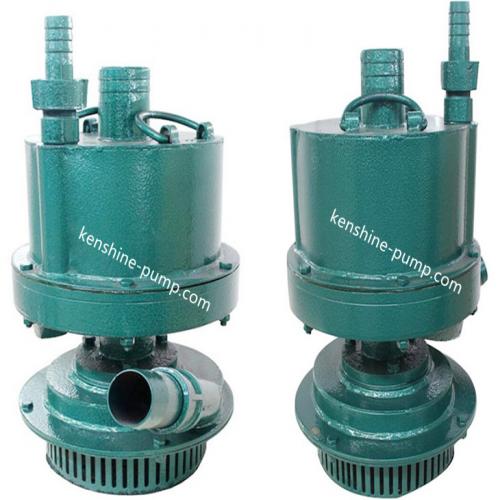

FQW70-30W FQW pneumatic submersible sewage pump Description

FQW mining pneumatic submersible sewage pump
FQW wind-driven turbo-submersible pump adopts a new pneumatic submersible pump driven by air-driven turbine and powered by compressed air. The pump has low noise, low air consumption and high efficiency.
Features
1, the noise is very small within 40 db;
2. Low air consumption and high efficiency;
3, small size, light weight, compact structure, easy to move;
4, long service life, less wearing parts, easy maintenance.
5.pneumatic pump
Conditions of use
1 when the pump is submerged, the surface of the water shall not exceed the end face of the muffler and pump shell;
2. The temperature of pumped medium shall not exceed 40℃;
3. Operating environment temperature (5-40) ℃;
4. The PH of the pumped medium is within the range of 6-8;
5. The maximum diameter of solid particles shall not exceed 10mm and the volume concentration shall not exceed 2%;
6. The compressed air used for power should meet the requirements of its wind pressure and air volume, air pressure range of 0.4mpa - 0.7mpa
