• Model Number: CIS80-65-200
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

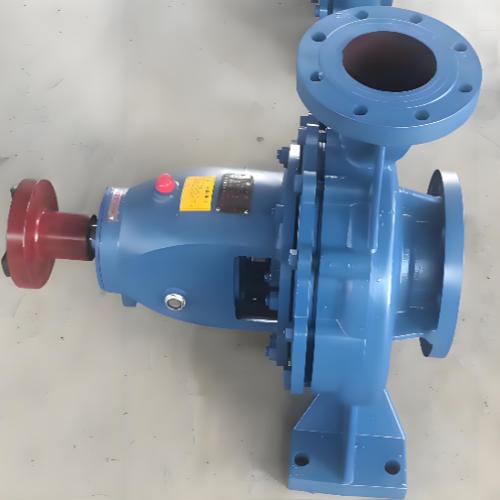

CIS80-65-200 CIS industrial marine end suction centrifugal pump Description

CIS Industrial marine end suction centrifugal pump

CIS pump refers to the CIS series marine horizontal centrifugal pump, which is a single-stage single suction centrifugal pump mainly designed for marine environments and can also be widely used in industrial and agricultural fields. ‌

Core Features

Applicable medium: It can transport seawater, fresh water, and other liquids with physical and chemical properties similar to water.

Main uses: often used as fire pumps, cooling pumps, ballast pumps, general pumps, and sanitary pumps on ships; In non marine scenarios, it can be used for urban water supply and drainage, farmland irrigation, etc.

Rotation direction: From the drive end, the pump rotates clockwise.

Structural features: Adopting a horizontal structure, some models have a rear opening door  /back pull door  design, which does not require disassembly of pipelines and motors during maintenance, making maintenance convenient. ‌

CIR series: Same performance parameters and installation dimensions as CIS pumps, but specifically designed for delivering hot water, with hot water temperatures typically not exceeding 120 degrees Celsius. ‌

This series of pumps is usually equipped with a 380V/50Hz three-phase power supply, with common speeds of 1450r/min or 2900r/min. The specific selection depends on the flow rate and head parameters. ‌

Pump body/housing: cast iron

Impeller: bronze

Stainless steel pump shaft.
