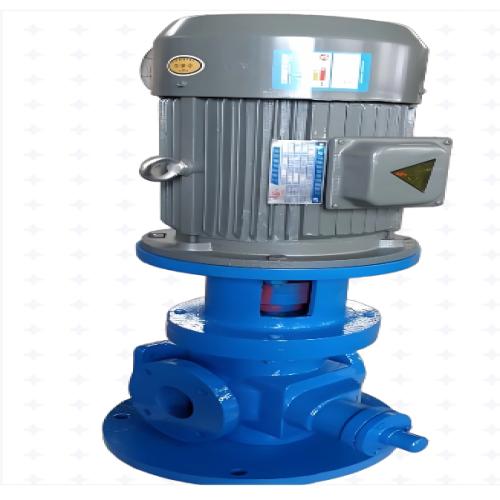

YCB8-0.6 YCB Vertical gear oil pump Description

YCB Vertical gear pump used to transfer lubricant or fuel oil

YCB vertical circular arc gear oil pump is a power transmission equipment designed with double circular arc sine curve tooth profile, mainly used in mechanical lubrication systems and lubrication stations in industries such as petroleum, chemical, steel, metallurgy, etc. Its core gear structure eliminates the tooth slip phenomenon of traditional involute gears by optimizing the meshing trajectory, thereby significantly reducing wear and extending service life.

This device has the characteristics of smooth operation, low noise, high efficiency, etc. The working pressure can reach 0.6MPa, the flow rate covers the range of 80-1000L/min, and is suitable for 1500r/min or 1000r/min. By designing a special tooth profile, the phenomenon of trapped oil is synchronously solved, which can be stably applied to forced lubrication conditions of heavy machinery such as compressors, ships, and mining equipment for a long time. The model configuration includes multiple specifications of motor power, with a diameter range of 40-100mm, and can be matched with corresponding models according to different working conditions.

Application:

YCB vertical gear pump is mainly used for forced lubrication of large mechanical equipment such as compressors, refrigerators, ships /marine, etc. in industries such as petroleum, chemical, steel, metallurgy, mining, power stations, and environmental protection, as well as long-term continuous operation of thin oil station systems in various mechanical equipment
