• Model Number: 100LW100-25-11
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1Set
• Supply Capacity: 1000Sets per month/month
• Payment: T/T IN ADVANCE
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

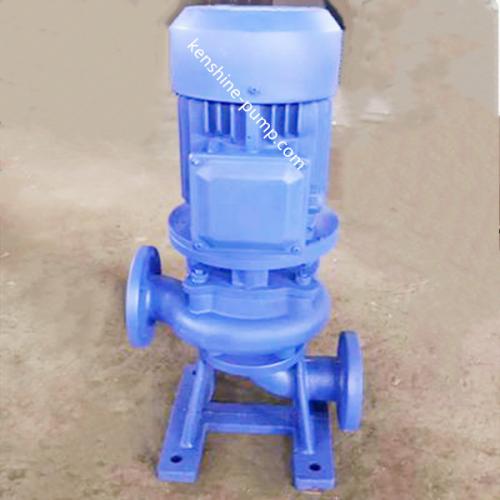

100LW100-25-11 Vertical non-clogging sewage pump Description

LW non-clogging vertical sewage pump is the new generation of pumps successfully developed on the base of the advanced technologies in domestic and abroad and with the usage characteristics of domestic pumps. It has the unique efficiency in discharging waste liquids with solid particles and long fiber.

The pump adopts the unique impeller structure and new type of mechanical seal, can effectively deliver a solid and long fiber. Compared with the traditional impeller, the impeller of the pump uses single flow channel or the double flow channels. It is similar to a cross section of bending tube with the same size which has very good pass for the

fluids with solid or fiber. The impeller is equipped with reasonable volute chamber to make the pump have high efficiency. The impeller passes the balance test for no vibration in the operation of pump. The hydraulic performance of the pump is advanced and mature and all the performance of the pumps have reached the relevant standards after testing. The unique power, reliable performance and stable quality of the pumps are welcomed and praised by the users.

Features:

1. Adopt the design of large flow channel anti-blocking hydraulic components, which can greatly improve the capacity of sewage passing through, and effectively pass through 5 times of fiber characteristics of pump diameter and solid particles whose diameter is about 50% of pump diameter.

2. Reasonable design, reasonable supporting motor, high efficiency and remarkable energy-saving effect.

3. The mechanical seal adopts single end seal, made of hard wear-resistant and anticorrosive tungsten carbide, which is durable and wear-resistant, and can be used safely and continuously for more than 8,000 hours.

4. LW(I) pump is directly connected to the motor, which is a mechanical electronics product with compact structure and stable performance.

5. Advanced hydraulic performance, high efficiency and low operating noise.

6. When the pump is added a protective cover at the fan end of the motor, the whole machine can be operated outdoors without machine room, which can save a lot of infrastructure costs.

7. Pump and motor are the whole machine structure, so there is no need to correct the installation.

Application:

1. Discharge of seriously polluted wastewater from factories and businesses

2. Urban sewage treatment plant drainage system

3. Residential sewage drainage stations

4. Civil air defense system drainage station

5. Sewage discharge from hospitals and hotels

6. Municipal engineering, construction site

7. Exploration and auxiliary machinery for mines

8. Agricultural irrigation of rural biogas digesters

9. Water supply device in waterworks
