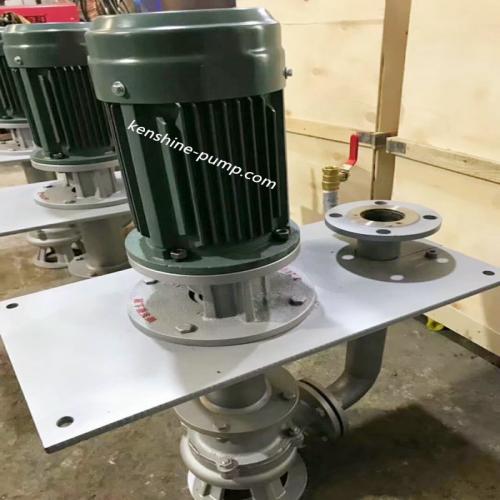

YWP50-20-15-1.5 Stainless steel immersible sewage pump Description

YWP Stainless steel immersible sewage pump
YWP stainless steel submerged sewage pump has the vertical submersible structure. When pump works, the pump body is immersed in water and the subaqueous depth can reach 0.5 ~ 5m. In addition, it adopts a unique single-blade or double-blade impeller structure, which can effectively pass through fiber material with 5 times of the pump diameter and solid particles with pump diameter of 50%.
The products comply with JB/T6525-92 technical Conditions of Centrifugal sewage Pump. YWP stainless steel submerged sewage pump has the structure of double-pipe and single pipeline. It has remarkable energy-saving effect, anti-winding, no blocking and other characteristics, and has unique effect in discharging wastewater with solid particles and long fiber etc. Impurities.

application
1. Urban sewage treatment plant drainage system.
2. Discharge of serious commercial wastewater from factories.
3. Sewage discharge in hospitals and hotels.
4. Sewage and drainage stations in residential areas.
5. Civil air defense drainage station.
6. Municipal engineering and construction site.
7. Exploration and mine auxiliary equipment.
8. Rural biogas digester for farmland irrigation.
9. Water supply installation in a waterworks.

working conditions
Flow: 2 ~ 850m3/h
Head range: 3 ~ 45m
Rated speed N: 1450 ~ 2900r/min
Medium temperature: -15℃ ~ +60℃
Medium density: ≤1.3×103kg/m3
Medium PH value: 5 ~ 9
High working pressure of system Z: ≤ 0.6mpa

Features
1. compact structure, small volume, convenient movement and simple installation.
2. high efficiency and remarkable energy-saving effect.
3. single-blade or double-blade impeller structure, which greatly improves the ability of sewage to pass through. It can effectively pass through fiber material with 5 times of the pump diameter and solid particles with a diameter of about 50% of the pump diameter.
4. mechanical seal: hard wear-resistant tungsten carbide with durability and wear resistance,
5. It can be equipped with automatic liquid level control cabinet according to the needs of users, and the start and stop of the pump can be automatically controlled according to the change of virtual liquid level. It is very convenient to use without special care.
6. vertical structure. The pump body is immersed in the liquid during operation, so it is easy to start, and there is no exhaust pumping problem.
7. Pump shaft with high quality. Pump and motor are connected by shaft coupling.
8, Pump can work in the lift range and motor is not overloading.
9. installation: single pipe installation and double pipe installation and the supporting parts include disc and square plate installation.
