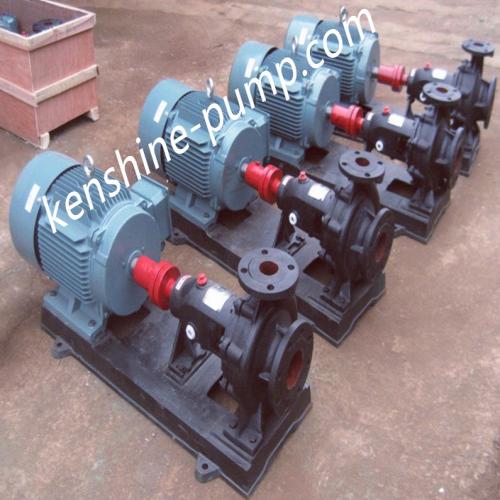

IS80-65-125 IS horizontal centrifugal fresh water pump Description

IS single-stage single-suction (axial suction) centrifugal pump is for the energy-saving pump designed and manufactured at the base of BA, B and other single-stage clean water centrifugal pump.
The pump has the good hydraulic performance and reasonable structure, a wide application range and easy maintenance and high efficiency etc.
IS centrifugal freshwater pump is suitable for industrial and urban water supply and drainage. It can also be used for agricultural drainage and irrigation and for conveying water or other liquids with physical and chemical properties similar to water. The liquid temperature is not higher than 80℃.
Features:
1. IS centrifugal pump is designed according to the performance and size specified by the international standard ISO2858. It mainly consists of pump body, pump cover, impeller, shaft, seal ring, shaft sleeve and bearing, etc.
2, IS pump body and pump cover are divided from the back of the impeller. It means the pump has the structure of back pull out for the convenient maintenance. During the maintenance, do not move the pump body, suction pipeline, discharge pipeline and motor etc, just remove the middle coupling of the extension coupling and then can exit the rotor part for maintenance.
3, The seal for the pump can be packing seal or mechanical seal.
4. The pump can be driven by motor or diesel engine.  Pump rotation direction is for clockwise rotation from the driving end,
