• Model Number: IJ100-65-315
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

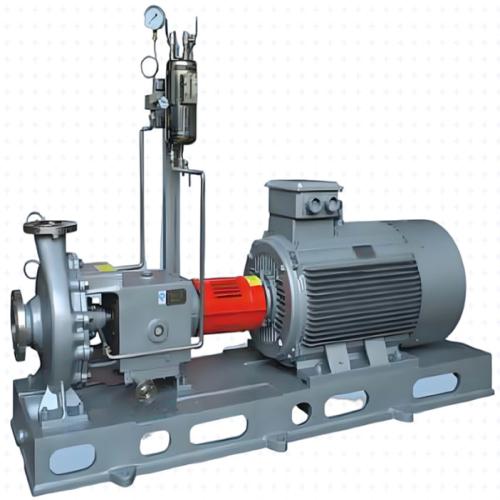

IJ100-65-315 IJ Centrifugal chemical process pump Description

IJ series chemical process pump absorbs techniques in

API610 the 10"' edition and ASME B73.l-2001 standard,

and is a successful upgrade and innovation based on IH pump (a Chinese standard chemical process pump series).IJ series chemical process pump is a centrifugal pump of

horizontal, single stage, single suction, cantilever design,

its performance parameters conform to GB/T5662

standard (corresponding to 1SO2858). Adopting advanced

hydraulic design, the pump possesses higher hydraulic

efficiency, heightening by 5% in comparison with IH

pump, and thus it is an energy-saving product. In the

design of structure, by referring to American ANSI

standard, the shaft diameter is increased and cantilever

ratio is shorten to eliminate the shortages that IH pump's

shaft breaks frequently, thus operational stability improves,

maintenance fee and operational cost decreases. Through

uninterrupted research and improvement on mechanical

seal and seal chamber by referring to American API 682

standard, 171 series mechanical seal is developed and

applied successfully to the industries of soda, chlorine[1]alkali, salt-making, metallurgy, paper-making and environmental protection as well as other industries where

the medium is liable to crystallize or contain solid

particles.  Besides 171 series mechanical seal, IJ series

chemical process pump can adopt other seal plans

recommended by API 610. Through Over ten years'

improvement and models development, the applicable

scope of IJ series pump is gradually extended,

presently there are over 100 specifications, covering

the applications of all the chemical processes under

pressure 2.SMPa and temperature 200°C. IJ series is

one of three main chemical process pump series

extensively applied along with CZ and ZA series in China. The pump is widely used in chemical industry, petrochemical, paper-making, dyeing, food etc.

Conform to 1502858, GB/T5656, APl682 Standard,

Max operating pressure 2.SMP

Range of Capacity (0.64-2400)m3/

Total head (4-250)m

Range of operating Temperature( -20-200)'C

Material: For wetted parts in contact with medium, the common materials are as follows: 304,321,316L, 310Cu, 0Cr25Ni6 (duplex stainless steel),alloy 20#, 904, TA2 (titanium, Ti/Pd(titanium-palladium alloy), Ni(nickel), Monel etc.
