• Model Number: CQB50-40-160G
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 1000Sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

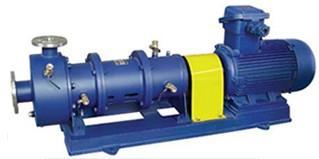

CQB50-40-160G CQB-G high temperature magnetic pump Description

CQB-G Series high temperature magnetic pump uses multiple circulating cooling structure to ensure the dependability and stability of prime mover and magnetic drive. Meanwhile,pin coupling is used to reduce the noise and vibration of pump. The detachable type and pin coupling makes the structure of pump longer,which is good for heat dissipation. Moreover, to make repair and replacement of spare parts much easier, a heat dissipation fan blade is designed on the outer rotor of pump to ensure the stability of magnet  steel. This  series of pumps are applicable for high temperature mediums,with service temperature is not higher than 300 degree celsius.

Material of wet parts: stainless steel

Connecting types: Flange

Flow:3.2-100m3/h

Head:20-80m

Power:0.75-75KW

Kinematic viscosity of medium

≤30*10-6m3/s

Medium temperature:120-300 degree celsius
