• Model Number: IS/PW
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

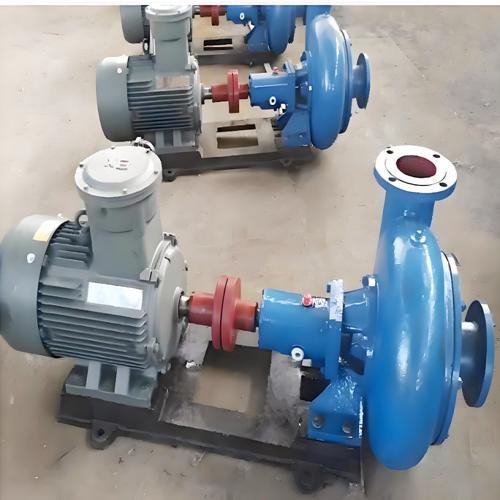

IS/PW Clean water and sewage drainage pump Description

Clear water pumps and sewage pumps are two common types of pumps, each designed for different liquid transportation needs. The main differences include the medium handled, structural design, application scope, and performance characteristics.

1.The most significant difference between clean water pumps and sewage pumps lies in the media they handle. Clean water pumps are primarily used to convey clean water or liquids with physical and chemical properties similar to clean water, typically free of impurities or particulate matter. As a result, clean water pumps have relatively lower material requirements and are easier to select. In contrast, sewage pumps are designed for environments with poorer water quality, such as liquids containing highly corrosive substances, easily entangled or clumped fibers, and other complex components. These liquids may include solids like feces, paper scraps, and fibers, which impose higher demands on the pump's structure and performance.

2. Structural Design Differences

Due to the different media being handled, there are significant differences in the structural design between clean water pumps and sewage pumps. Clean water pumps are typically composed of a motor and a water pump, featuring a relatively simple structure. The clearance between the impeller blades is smaller to enhance efficiency. However, this also means that if debris is generated during operation, it can easily clog inside the impeller, causing it to stop rotating and leading to malfunction. Sewage pumps, on the other hand, require consideration of more factors to ensure reliability and resistance to blockage. To prevent debris from clogging the pipelines, the flow channels of sewage pumps are usually designed to be wider. The clearance between the impeller blades of sewage pumps is also larger than that of clean water pumps, accommodating the higher debris content in sewage. To avoid entanglement and blockage, the impeller design of sewage pumps is generally simpler and often includes serrated blades to crush debris.

3. Different application scopes

The application scopes of clean water pumps and sewage pumps also differ significantly. Clean water pumps are widely used in industrial and urban water supply and drainage, high-rise building water boosting, garden sprinkler systems, fire-fighting pressure augmentation, and other fields. They are also employed for agricultural irrigation, cold and hot water circulation pressure boosting in bathrooms, and equipment matching, among other applications.

Wastewater pumps are primarily used for transporting industrial wastewater, pumping station drainage, and urban flood discharge. Due to their unique structural design, these pumps can handle complex liquid compositions, making them widely applicable in industries such as sewage treatment, pond and lake aquaculture, light industry, papermaking, textiles, food processing, and chemical manufacturing

4. Performance Characteristics Comparison

In terms of performance characteristics, clear water pumps typically feature high head and relatively small flow rates. This is due to their structural design, which allows the pumps to utilize energy more efficiently, thereby increasing the head. However, this also means that clear water pumps are prone to clogging when handling liquids containing impurities.

Wastewater pumps have lower head and higher flow rates. This is due to their wider flow channels and larger impeller clearances, designed to accommodate the high debris content in wastewater. Although this results in relatively lower head for wastewater pumps, it also enhances their reliability and stability when handling complex liquids.
