• Model Number: 65AY50X5
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1
• Supply Capacity: 200sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

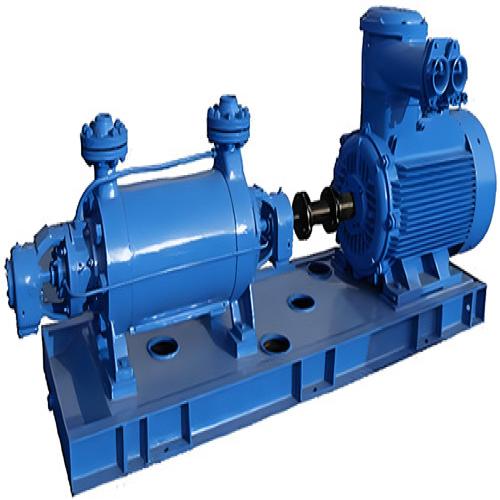

65AY50X5 AY horizontal multistage centrifugal oil pump up 400 degree celsius Description

AY multistage centrifugal oil pump Overview: A segmented, multi-stage horizontal centrifugal pump primarily used in fields such as petroleum refining, petrochemicals, and power generation, suitable for conveying petroleum and its products free of solid particles. Performance Range: Flow Rate Q=3.5～180 m³/h, Head H=70～650 m Temperature range: -20°C to +400°C Key Features: The AY series oil pump products are the upgraded version of the Y-type oil pump, featuring identical performance parameters and installation dimensions as the Y-type pump, facilitating the retrofitting of older models. ● The axial force of the pump is balanced using a combination structure of balance disc and balance drum, which prevents contact friction between the balance disc and balance plate when the pump starts, operates, or stops, as occurs with a balance disc structure. ● The advanced "triple flow" design method is adopted to enhance pump efficiency, achieving 2~5% higher performance than the corresponding Y-type oil pump. ● The product complies with GB3215 "General Technical Conditions for Centrifugal Pumps for Refinery, Chemical, and Petrochemical Processes" and API610 standards. Structural characteristics: ● Type: Segmental, double-supported, horizontal multi-stage centrifugal oil pump. ● Inlet and outlet directions: a) Vertical suction, vertical discharge; b) Horizontal suction, vertical discharge. ● Support methods: a) Pump foot support (suitable for locations where the transported medium temperature is below 150°C); b) Central support. ● Balancing mechanism: A combined structure of the balance disk and balance drum ensures no rotor axial movement during startup, operation, and shutdown. ● Shaft seal: Integrated mechanical seal. ● Coupling: flexible diaphragm coupling. ● Bearing: Rolling bearing, oil lubrication (cooling water is not required for conveying ambient temperature media). ● Rotation direction: From the motor end, the pump rotates counterclockwise.
