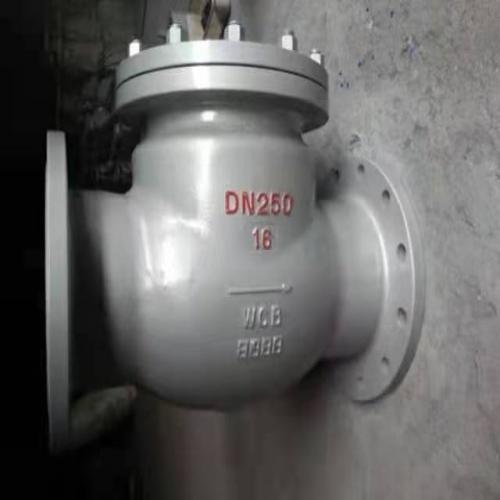

Tilting disc swing check valve (TH-CKV-TDS)

Tilting disc swing check valve (TH-CKV-TDS)
  • Model Number: TH-CKV-TDS
  • Brand Name: THV
  • Place of Origin: Tianjin, China
  • Minimum Order Quantity: 10sets
  • Supply Capacity: 1000sets/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

TH-CKV-TDS Tilting disc swing check valve (TH-CKV-TDS) Description

Area of application

Water supply and drainage, water treatment, fire-fighting and other systems

Data sheet of Tilting disc check valve:

TYPE:Wafer, double flangeSIZE & CONNECTIONS:DN50 to D600MEDIUM:Air, Inert Gas, Oil, Seawater, Waste water, WaterMATERIALS:Cast Iron / Ductile Iron/ Carbon Steel / Stainless
Steel / Alu BronzePRESSURE RATING:PN10, PN16TEMPERATURE:-30°C to 200°CSEAT/LINING:Replaceable Liner / Bonded Liner
NBR/EPDM/VITONCERTIFICATES & APPROVALS:DNV-GL, Lloyds, DNV, ABS, BV Type Approval
3.1 & 3.2 Cert (on request)

Standards

Design and Manufacture Conform to API 594

Dimensions Conform to ANSI B16.5

Face to Face dimensions Conform to API 594

Testing Conform to API598

Material of Tilting disc swing check valve Parts

PART NAMEMaterialBODYCast Iron; Ductile Iron; Stainless Steel; Carbon steelDISC / PLATEStainless Steel; Carbon steel; BronzeSHAFT / STEMStainless Steel Monel; Stainless Steel InconelSEAT / LININGNBR/EPDM/VITONBOLTSCarbon steelNUTSStainless steel

Tilting disc swing check valve features

 Double eccentric discs, when closing, the valve contacts the sealing surface gradually, so that it can work without impact and noise.

Micro-elastic metal valve seat, good sealing performance.

Butterfly valve design, quick and sensitive switching, and long lifetime.

The swash-plate structure makes the fluid channel to be streamlined, with small flow resistance and energy saving effect.

Check valves are generally suitable for clean media, and should not be used for media containing solid particles and high viscosity.

Easy maintenance, replaceable valve seat ring,

Adjustable valve body can be stopped to achieve full stroke and positive closure without damage

Integral lifting handle makes maintenance easier

Related types of check valves:

We have other types of check valves: single-disc swing check valve, dual plate check valve, lift swing check valve, silent check valve, ball check valve used in Oil, Gas, Marine industry, Water supply and drainage, fire fighting, shipbuilding, water treatment and other systems, with Nominal Diameter of DN50 to DN1200, NBR/EPDM/VITON, Certificates & Approvals: DNV-GL, Lloyds, DNV, BV, API, ABS, CCS. Standards: EN 593, API609, API6D
