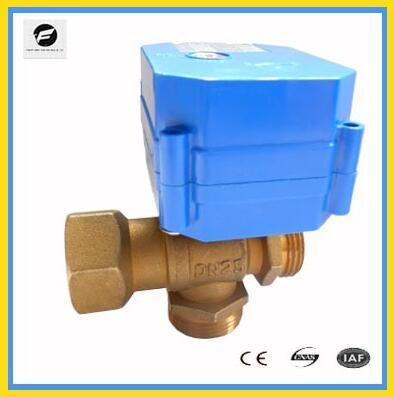

Mini 3 Way Electric Ball Valve for HVAC

Mini 3 Way Electric Ball Valve for HVAC
  • Model Number: CWX-15
  • Brand Name: TF
  • Place of Origin: Tianjin, China
  • Minimum Order Quantity: 1 Piece
  • Supply Capacity: 20000 Piece/month
  • Payment: L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

CWX-15 Mini 3 Way Electric Ball Valve for HVAC Description

Mini Motorized Ball Valve, Size from 1/4" to 1". AC/dc 5V, 12V, 24V, 110V, 220V. 2-way and 3-way, brass, stainless steel, CPVC


Features:

Mini dimension suits for small equipment

Patented technology-floating seal structure

Long service life 700,000 to 100,000 circles

Low working current, only 60 to 80mA

IP67 and F type are available

Manual override function is safe and easy


Applications:

HVAC CWX-15N/Q Mini 3 Way Electric Ball Valve for HVAC

Water treatment

Small equipment for automatic control

Replacing solenoid valve, particularly when solenoid cannot work reliably


Technical parameters:

Size: 1/2 to 1 inches

Material: stainless steel (304, 316), brass, PPO

Voltage: 5, 12, 24, 110 to 220V AC/DC

Working pressure: 1.0 or 1.6mPa

Actuator rotation: 90 degree

Rotation direction: double acting

Power: maximum 5W

Manual override: available


Material of main parts:

Actuator: heat-resistant ABS

Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings .

Body: brass or stainless steel

Ball: brass or stainless steel

Stem: brass or stainless steel


Material brass or SS304 Stainless Steel
Temperature of Media Medium Temperature
Port Size 1/2 to 1
Open/close time 3-5seconds
Output torque 1.5~6NM
Actuator rotation 90/180 degree
Rated current 45-100MA
Control mode 2,3,5 wires(CR01/02/03/04/05/06)
Low Working Current 80mA~150mA
Rated Volotage DC3-6V/AC/DC9-24V
