DC24V 2 way 20mm DN20 3/4" electric brass ball valve for water heating

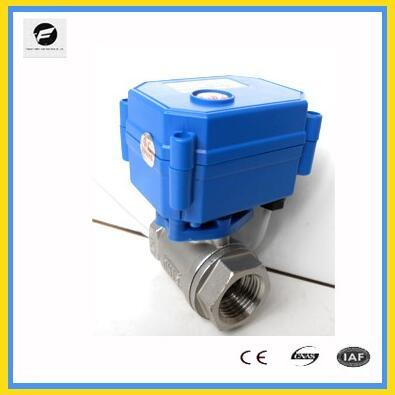

DC24V 2 way 20mm DN20 3/4" electric brass ball valve for water heating
  • Model Number: CWX15N/Q
  • Brand Name: CWX
  • Place of Origin: Tianjin, China
  • Minimum Order Quantity: 1 Piece
  • Supply Capacity: 20000 Piece/month
  • Payment: L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

CWX15N/Q DC24V 2 way 20mm DN20 3/4" electric brass ball valve for water heating Description

Application:

1.HVAC

 2.Pure water and water filter system and water treatment

 3.Chemical process

 4.Small equipment for automatic control

 5.Replacing solenoid valve, particularly when solenoid cannot  work reliably

 6.Industrial humidifier

 7.Water-saving shower system

 8.Irrigation system DC24V 2 way 8mm DN8  1/4" electric ball valve for solar water pump

 9.solar heater water system

 10.water-cycle and offer-grid system


 Features:

1).Smart shape,Perform reliably, large output torque, as long as 80000-100000 times.

multi-angel assembling,convenience for all kinds of requirements.

2).Float ball design,no leak, most suitable for heavy dirt and long time no action.

3).The conditions that solenoid valve can not be worked.

4). Under the pressure between 1Mpa and 2Mpa, the working current is only 45mA to 100mA (it depend on the different type)

5). High protection class, can be worked in moist conditions.



Technical Parameter:

Actuator rotation:90 degree

Actuator motor:Micro DC motor

Actuator color:Black,Blue,Red

Actuator control wiring:2,3,.5 wires(CR01 to CR06 Wiring)

Actuator enclosure:IP65 DC24V 2 way 20mm DN20 electric ball valve for solar water pump

Actuator output torque:15Q-1.5Nm,15N-2N.m,25S-2N.m,60P-6N.m

Medium temperature:0-100°C DC24V 2 way 20mm DN20 3/4" electric brass ball valve for water heating

Power Consumption:15Q,15N,25S,20P<2W,60P<6W

Product life:80,000 times

Special function:Position indicator;quick open

                 signal feedback,manual override

                 fail safe(auto-return) function

Valve open/close time:15Q-3sec,15N-5sec,25S-7sec,60P-11sec

Valve thread Connection:GB/BSP/NPT

Valve Pressure:1.0Mpa/150psi/PN10

Valve body Material: Stainless steel (304, 316), Brass(Hpb58-3/59,Ni plated Brass

Valve Size: DN8,DN10,DN15,DN20,DN25,DN32

Working Medium:Pure water,water,50% glycol,Oil,Air

Actuator Working Voltage:5VDC,9-24VAC/DC,85-265VAC


Material brass or SS304 Stainless Steel
Temperature of Media Medium Temperature
Port Size 1/4" ~ 2
Rated Volotage DC3-6V/AC/DC9-24V
Output torque 1.5~6NM
Rated current 45-100MA
Actuator rotation 90/180 degree
Control mode 2,3,5 wires(CR01/02/03/04/05/06)
Open/close time 3-5seconds
Low Working Current 80mA~150mA
