• Model Number: 00016
• Brand Name: QUANSHUN
• Place of Origin: Henan, China
• Minimum Order Quantity: 1 set
• Supply Capacity: 1000 sets/month
• Payment: T/T,L/C
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

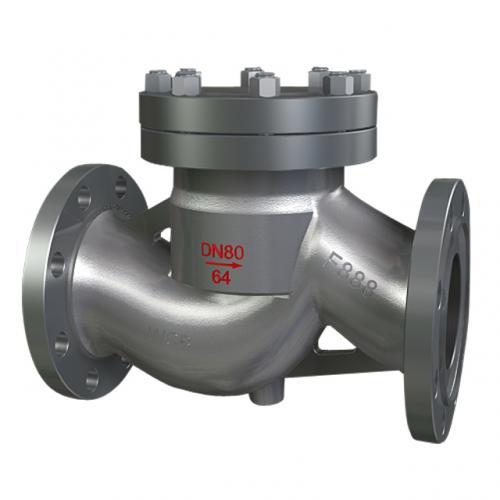

00016 lift check valve Description

Effectively preventing medium from backflow, the lift check valve is suitable for the application on the pipeline of petroleum industry, chemical industry, hydraulic power plant to control water, gas, oil and other corrosive medium. Using under high pressure is also available with this valve.Features1.The valve disc moves up and down along the midline of the valve body. Under the pressure of the fluid which flows in one direction, the valve disc will be raised up from the sealing surface of the valve seat. If there is backflow, the valve disc will return back to the valve seat to cut off the medium. 2.To further reduce the impact, the lift check valve is engineered with piston dashpot, which is installed with spring.3.There are small holes on the piston. When the piston is moving, the medium will flow slowly, which will reduce the impacting force to the valve greatly .Technical SpecificationsSize: 2”-16” DN50~DN400Pressure: Class 150-Class1500  PN1.0~PN32Body Material : WCB(A105),CF8(304),CF8M(316),CF3(304L),  CF3M(316L)Material of Sealing Surface: Rubber, PTFE, Hard alloy, etc.Connection Type :Flange, weldDesign  Standard: ASME B16.34, ASME B16.10,ASME B16.5ApplicationsPetroleum industry, chemical industry, hydraulic power industry.
