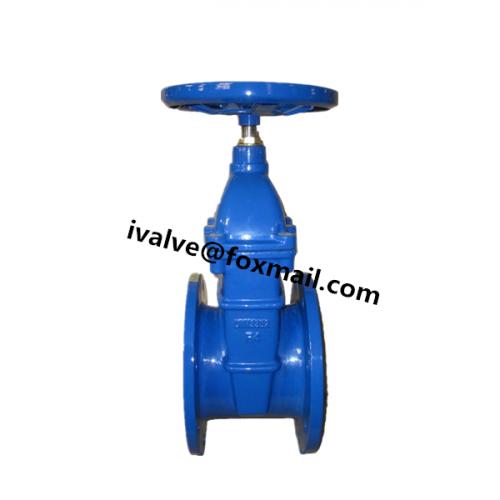

DIN F4 Resilient Seated Gate Valve

DIN F4 Resilient Seated Gate Valve
  • Model Number: GTV003
  • Brand Name: GateValves
  • Place of Origin: Tianjin, China
  • Minimum Order Quantity: 10 PCS
  • Supply Capacity: 200 Tons/month/month
  • Payment: T/T,L/C
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

GTV003 DIN F4 Resilient Seated Gate Valve Description

Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint



DIN F4/F5 Resilient Seated Gate Valve

Specifications

1. Suitable media: Water.

2. Flange: DIN2501/EN1092-2 PN10/16/25.

3. Nominal diameter: DN40~DN600 (1 1/2"~24").

4. Tightness check: API 598/ISO 5208/EN12226-1.

5. Working pressure: PN10/PN16/PN25 or 10Bar/16Bar/25Bar.

6. Operator: Cap top, hand wheel, Gear box, electric actuator, etc.

7. Working temperature: -20 to 120 centigrade. (EPDM: -20 to 120, NBR: -10 to 80).

8. Face-to-face conform to DIN3352/DIN3202 F4/F5(ISO5752 Series14/15)/EN558-1 Series14/15.




Main parts materials

A) Seat: EPDM/NBR/Brass.

B) Gland follower: Brass/ductile iron.

C) Bolt and nut: Stainless steel, steel with zinc.

D) Stem: Stainless steel, brass, bronze, steel with zinc.

E) Hand-wheel: Ductile iron/ malleable Iron/carbon steel.

F) Body/Bonnet/Disc: Cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450.


Delivery & Packaging

Delivery Detail: General within 30 days or according to the order quantity.

Packaging Detail: Plywood case. (each PC into one bubble plastic bag, several PCS into one Plywood case).

Body&Bonnet Ductile Iron
Disc Ductile Iron+EPDM/NBR
Stem Stainless Steel
Design DIN3352 F4/F5
Face to Face DIN3202/ISO5752
