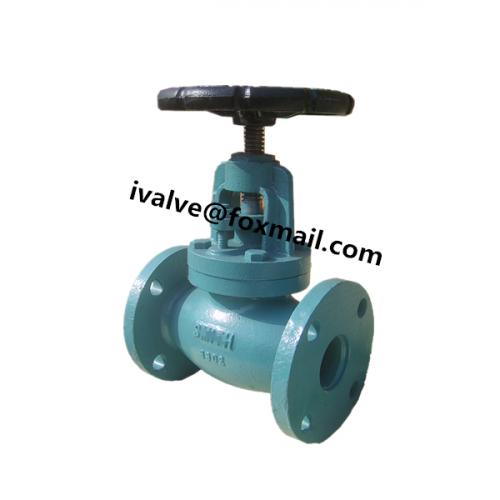

Cast Iron ANSI Globe Valve
- Model Number: GLV002
- Brand Name: GlobeValves
- Place of Origin: Tianjin, China
- Minimum Order Quantity: 10 PCS
- Supply Capacity: 200 Tons/month
- Payment: T/T,L/C
- MemberShip: Free Member
- Inquiry Now
GLV002 Cast Iron ANSI Globe Valve Description
Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint
ANSI GLOBE VALVE
Design and Manufacture: MSS SP-70
Face to face: ANSI B16.10
Flange end: ANSI B16.10
Nominal Pressure (PSI): 250/125
Shell Test (PSI): 350/875
Seal Test (PSI)): 200/500
Body Material: Cast iron ASTM A126 CL.B
Bonnet Material: Cast iron ASTM A126 CL.B
Disc: Cast iron ASTM A126 CL.B+Bronze B62/Brass B16 / Stainless Steel 2Cr13
Stem: Brass B16 / Stainless Steel 2Cr13
Seat ring: Bronze B62 / Brass B16 / Stainless Steel 2Cr13
| Body&Bonnet | Cast Iron |
|---|---|
| Disc | Cast iron+Bronze/Brass/2Cr13 |
| Stem | Stainless Steel |
| Seat Ring | Bronze/Brass/2Cr13 |
| Face to Face | ANSI B16.10 |
