• Model Number: IN50-32-250
• Brand Name: kenshine-pump
• Place of Origin: Shanghai, China
• Minimum Order Quantity: 1set
• Supply Capacity: 600sets per month/month
• Payment: T/T in advance
• MemberShip: Free Member
• Inquiry Now
• Bookmark & Share:

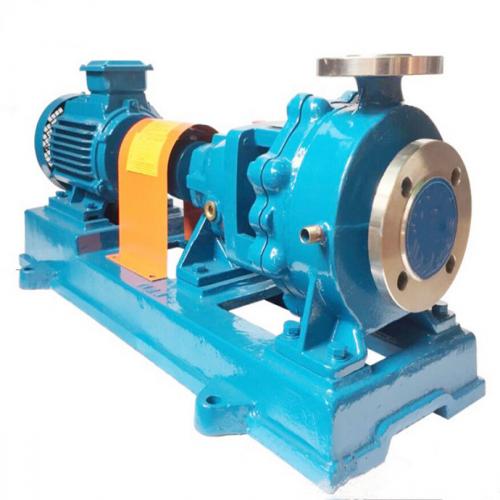

IN50-32-250 Chemical centrifugal pump with hea preservation jacket to convey melting urea solution Description

IN melting urea pump is a single - stage single - suction cantilever centrifugal pump. It is suitable for conveying melted urea liquid in fertilizer plant, and it can also be used for conveying other corrosive liquids without suspended particulate matter. Medium temperature allows -20 to 150 degrees Celsius, the pump is horizontal suction, radial top discharge out, the front side of the pump has heat preservation jacket, double protection jackets can allow 0.59MPa,150 degrees Celsius steam heat preservation. Users can choose different materials, models and different flow and heads according to the corrosion performance of the conveying medium. The pipe is connected with the input of steam or hot water to the jacket for heat preservation, which it can transport the medium that will solidify or crystallize below a certain temperature. The heat preservation jacket shall be welded with 304 steel plates and arranged reasonably to ensure the space inside the jacket, so as to achieve good heat preservation effect. The heat preservation jacket inlet and outlet joint can be thread type and flange type. Normally it is for thread type. When flange type is needed, kindly inform us.
