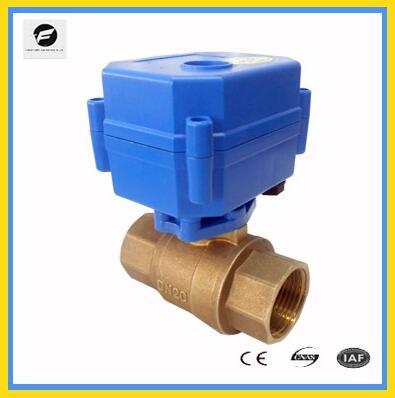

brass stainless steel 12v 2 way motorized ball valve

brass stainless steel 12v 2 way motorized ball valve
  • Model Number: CWX-15
  • Brand Name: TF
  • Place of Origin: Tianjin, China
  • Minimum Order Quantity: 1 Piece
  • Supply Capacity: 30000 Piece/month
  • Payment: L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

CWX-15 brass stainless steel 12v 2 way motorized ball valve Description

Brass stainless steel 12v 2 way motorized ball valve with actuator


Parameter
Actuator rotation:90 degree
Actuator Motor:Reversible synchronous motor
Actuator color:Various
Control wirng:2,3,5 wires/Wiring CR01 to CR06
Control Way:on/off,open autimatically when power-of,3-wires control,5-wires for signal feedback
Enclosure:IP65 brass stainless steel 12v 2 way motorized ball valve with actuator
Medium temperature: 0-100°C
Open/close time:15Q-3sec/15N-5sec
Output torque:15Q-1.5Nm/15N-2N.m
Power Consumption:<2W
Pipe Connection:GB/BSP/ANSI/NPT
Pressure:1.0Mpa/150psi/PN10
Product life: 100,000 times
Rotation direction: Double acting
Size: 1/4",1/2",3/4",1",1 1/4" ,8mm,10mm,15mm,20mm,25mm,32mm
Special function:Position indicator;quick open
signal feedback,manual override
fail safe(auto-return) function
Valve body Material: Stainless steel (304, 316), Brass(Hpb58-3/59,Ni plated Barss
Working Medium:Pure water,water,50% glycol,Oil,Air


Features:
1.All-metal reducing gear
2.Available for 3-6VDC,12VDC,24VDC,110V/120VAC 220/230VACwork volatge
3.Electrical limit and machinery limit design,accurate position,avoid gear with switch.
4.Excellent sealing performance what sealing class is IP65
5.Float ball structure,no leakage,especially suitable for heavy pollution conditions.
6.Good substitution for solenoid or pneumatic valve.
7.High flow capability, 3 times flow rate more than traditional zone valves
8.High protection class,can be worked in moist conditions.
9.Large output torque, which suitable for the pipe system with much scaling.
10.Long service life 80,000 to 100,000 circles
11.Low working current, only 50 to 150mA
12.Mini dimension suits for small equipment
13.Multi-angle assembling,easy to install.suitable for both vertical and horizontal installation
14.Optional manual lever for convenient operation when power is off
15.Patent technology of scale prevention design which can postpone the scaling time.
16.Small volume, compact structure, small and exquisite outlooks, various assembling methods with manual control and switch indication.
17.Smart shape,perform reliably,brass gear,PPO parts,large output torque.
18.Smooth flow, no block up
19.Tight close, no leakage
20.The power is cut off when the valve reaches the on/off position
21.The actuator cover adopts close structure which is resistive to humidity and ensures reliable operation for motor
22.This ensures long life service for the actuator
Material of main parts:
Actuator: heat-resistant ABS
Body: brass or stainless steel
Ball: brass or stainless steel
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
Stem: brass or stainless steel


Applications:
1.Air-warm valve.HVAC and fire works.
2.IC card meters,heat energy meters
3.Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.
4.Multiple voltage and control mode, applicable to a variety of occasions.
5.Replacing solenoid valve, particularly when solenoid cannot work reliably
6.Solar thermal,under-floor,rain water,irrigation,plumbing service,hot water heating and solar glycol loop,ideal for off-grid system.
7.Water,Irrigation system,cooling/heating system,Low voltage plumbing system
8.Small equipment for automatic control
9.Water equipment,auto-control water system,industrial mini-auto equipment, Small equipment for automatic control
10.Water treatment

Material brass or SS304 Stainless Steel
Temperature of Media Normal Temperature
Power electric,maximum 5W
Voltage 3-6vDC,AC/DC9-24v,AC110V AC220V
Size 1/4",1/2",3/4",1",8mm,15mm,20mm,25mm
Working pressure 1.0 mPa,150psi
current 45-100mA
Open/close time 8-12seconds
Control mode CR01/02/03/04/05/06
Medium temperature 0-90 degree
