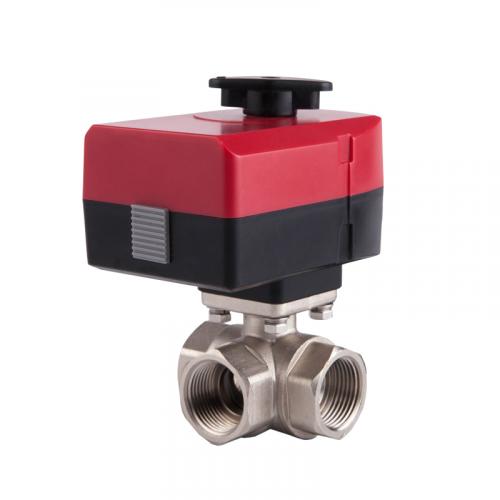

AQUA600-3 Series of Motorized Ball Valve

AQUA600-3 Series of Motorized Ball Valve
  • Model Number: AQUA600-3
  • Brand Name: OEM
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 100
  • Supply Capacity: 10000/month
  • Payment: T/T, D/P, L/C, Paypal, Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

AQUA600-3 AQUA600-3 Series of Motorized Ball Valve Description

The new product is to be met the requirement of customers with compact size, large torque, simple operation and free maintenance, convenient for installation under different working conditions. In addition, the actuator is equipped with a manual handle, so it can open or close valve in case of the power cut or other emergency.

ItemPort sizeInchBody size(mm)N.W(g)

2wayAQUA600-2-15DN151/25529.543.5230AQUA600-2-20DN203/4”603351.5310AQUA600-2-25DN201”70.53759.5490AQUA600-2-32DN321-1/4”85.54267.57803wayAQUA600-3-20DN20  3/4”643348.5380AQUA600-3-25DN251”743758580AQUA600-3-32DN321-1/4”87.54267.5800

Driving mode Electric/Manual,with Position indicator
PN Class PN16
Valve characteristic 90°Rotary
Power supply AC230V /24V AC
Torque 12 Nm
Running time 33~36 seconds
Valve platform ISO5211(F03)
Valve material Brass Ball Valve (Nickel Plated)
