Toilet Solenoid Valve FCD.3-138B

Toilet Solenoid Valve FCD.3-138B
  • Model Number: FCD.3-138B
  • Brand Name: KANGLEDA
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1000pcs
  • Supply Capacity: 20000pcs per day/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

FCD.3-138B Toilet Solenoid Valve FCD.3-138B Description

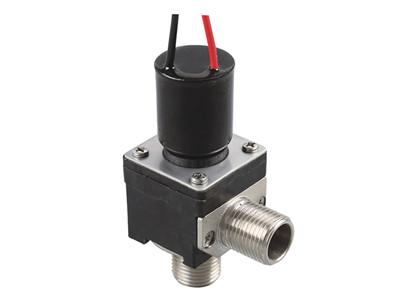

Toilet Solenoid Valve FCD.3-138B

PRODUCT DESCRIPTION

Spec.: FCD.3-138B

Type: Smart Sanitary Solenoid Valve Series

Ordering Information:

1. When ordering, please specify the specific product specifications and quality according to the "model meaning".

2. If the user has special needs, please specify when ordering.

Application:

Smart Sanitary Solenoid Valve is mainly used in intelligent bathroom, intelligent toilet,smart bidet,intelligent urinal and so on. At present, we usually supply these solenoid valve to intelligent toilet manufacturers from home and abroad.

Advantage:

The starting performance of the solenoid valve is very good

It is not easy to age of the solenoid valve

It is with simple structure design,so the disassembly and repair of the solenoid valve is convenient

Specification:

Model:

FCD.3-138B

Rated voltage:

Pulse 6V/DC9V/DC12V/DC24V/DC36V/DC48V/DC110V/

AC12V/AC24V/AC36V/AC48V/AC110V/AC220V

Working pressure:

0.02~0.8Mpa

Inlet:

G1/2”male thread

Medium temperature:

0~50℃

Outlet:

G1/2”male thread

Water pressure:

0.02Mpa

0.1Mpa

0.3Mpa

0.8Mpa

Flow:

≥3L/min

≥8L/min

≥13L/min

≥25L/min
