Resilient Seated Gate Valve - BS 5163 & DIN 3353 F4/F5 & ASME B16.10
- Model Number: 001
- Brand Name: OEM
- Place of Origin: Anhui, China
- Minimum Order Quantity: 10
- Supply Capacity: 20,000 set/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
001 Resilient Seated Gate Valve - BS 5163 & DIN 3353 F4/F5 & ASME B16.10 Description

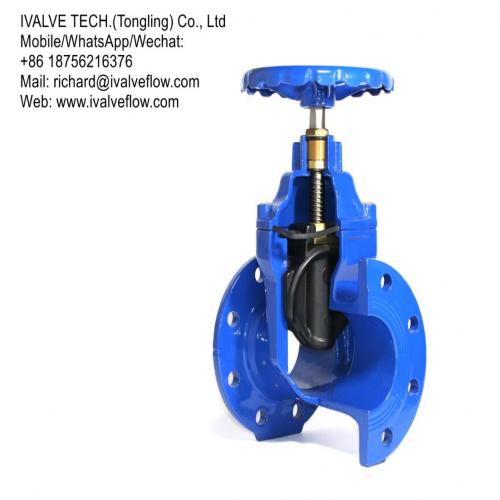

Non-Rising Stem Resilient Seated Gate Valve
Body/Bonnet: Ductile iron;
Disc: DI+EPDM;
Stem: SS420;
Stem Nut: Brass;
Bonnet bolts: Galvanized carbon steel;
Rating: PN10/16/25;
Double flanges to EN1092-2, PN10/16/25; (for neutral water application, drinking water upon request)
Operation: Handwheel/Square cap;
Coating: Fusion bonded epoxy powder coating min 250 microns, Color upon request.
| Body/Bonnet | Ductile iron |
|---|---|
| Disc | DI+EPDM |
| Stem | SS420 |
| Bonnet bolts | Galvanized carbon steel |
| Rating | PN10/16/25 |
| Flange | Double flanges to EN1092-2, PN10/16/25; (for neutral water application, drinking water upon request) |
| Operation | Handwheel/Square cap |
| Coating | Fusion bonded epoxy powder coating min 250 microns, Color upon request |
