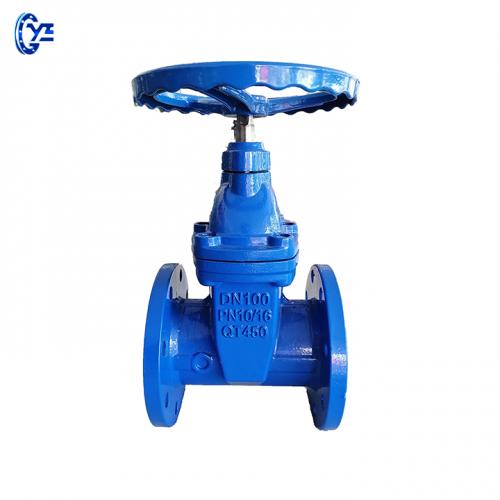

Z45X-16 Resilient seat soft seal gate valve Description

Resilient seat soft seal gate valve

Parts nameMaterialValve body BonnetDuctile ironStemstainless steelWedgeDuctile iron+NBR/EPDM

Production

Specification

Design SpecFace to FaceFlange EndTest & CheckAWWA C509-94GB/T 12221GB 9113GB/T 13927TypeNominal pressureTesting pressure
Suitsble temperature(℃）
Suitable medium
Strengh(Water)(MPa)Enclose(Water)(MPa)Z45X-161.62.41.8≤80Water

Usage: Use the compensation effect of the slight deformation of the elastic gate plate when it is stressed to achieve a good sealing effect. When the temperature of the medium is not higher than 80℃, it can be widely used in pipelines in construction, food, chemical energy, water supply and drainage and other industrial fields.

Company Profile

Hebei Yaosheng IM & EX Trading Co.,Ltd located in B # industrial park, Xushui district, Baoding city, Hebei province,is a professional company integrating the research, development, manufacture and sales.

Standards such as GB, JB, US API, ANSI, British BS, German DIN, Japanese JIS, GOST, and French NF are mainly adopted. Production size: DN15~DN2000mm(1/2〞~ 80〞), pressure level: 0.25~6.4Mpa(125LB~600LB), working environment: -60℃~550℃. Additionally, materials mainly include WCB cast iron stainless steel , etc. There are about 100 series of products,such as, gate valve, globe valve, check valve, ball valve, butterfly valve, bottom valve, drain valve, filter, and flange, which have been widely used in fields of petroleum, petrochemical, chemical, electric power, construction, medicine, water supply and drainage.

Products have been widely launched in the market of European and Middle East and Southeast Aisa ,mainly inlcuding the United States, Romania, Spain, Vietnam, Indonesia, Malaysia, Russia, Kazakhstan, Ukraine and other countries. They have gained high credibility acceptation of clients.

Our company always abides by the business idea of ‘oriented by science and technology, guaranteed by high quality, guided by credibility, and targeted by service’ and make continued efforts to pursue for excellent quality, to create its brand value. Meanwhile, the company can achieve stable and high-efficiency development when providing high-quality service.

With the spirit of making perfection and being efficient, and practical, we wish to supply high-quality products and service for you by cooperating to reach mutual win-win result.

name	Resilient seat soft seal gate valve
valve body	ductile iron,cast iron
stem	stainless steel
wedge	ductile iron+NBR/EPDM
temperature	≤80℃
pressure	normal pressure
size	DN50~600
type	Z45X-16
