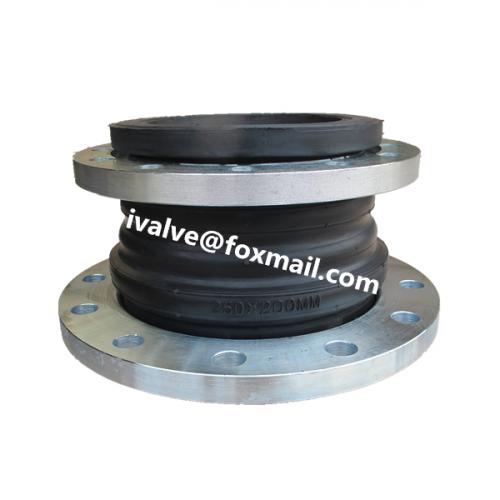

PN16 Flanged Rubber Expansion Joint

PN16 Flanged Rubber Expansion Joint
  • Model Number: RJ005
  • Brand Name: RubberJoint
  • Place of Origin: Tianjin, China
  • Minimum Order Quantity: 10 PCS
  • Supply Capacity: 200 Tons/month
  • Payment: T/T,L/C
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

RJ005 PN16 Flanged Rubber Expansion Joint Description

Our Range:Butterfly Valve,Gate Valve,Check Valve,Globe Valve,Ball Valve,Y Strainer,Rubber Joint



Main parts materials

Rubber: EPDM/NBR/Neoprene

Carcass: Nylon Cord Fabric

Reinforcing wire: Spring Steel wire

Flange Type: Carbon steel, Zinc Plated (DIN2501,ANSI B16.5,JIS etc)

Union Type: Malleable iron, zinc plated (DIN2999,NPT,BSP etc)



Technical information

Working Pressure: 10Bar,16Bar,25Bar

Burst Pressure: 30Bar,48Bar,55Bar

Vaccum: 400mmHg,650mmHg,750mmHg

Temperature: EPDM(-10 to 120 degree),NBR(-10 to 82 degree),Neoprene(-10 to 110 degree)

Medium: Air,Water,Oil,Acid,Alkali and etc.

Outer/Inner Rubber NR/NBR/EPDM
Reinforcing Fabric Nylon
Retain Rings Steel
Flange Q235/ST37/A105
Union Malleable Iron
