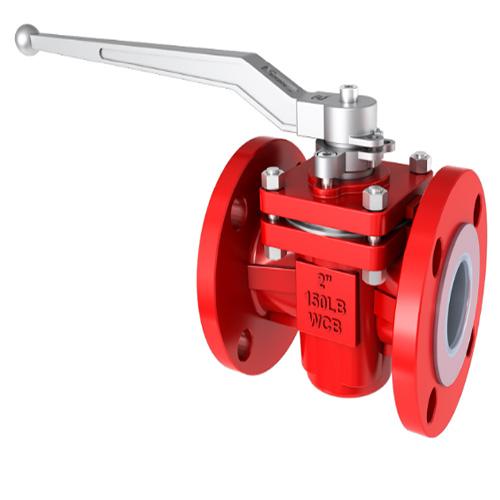

PFA FULL LINED PLUG VALVE
- Model Number: X41F
- Brand Name: YFM
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1
- Supply Capacity: 10000/month
- Payment: T/T
- MemberShip: Gold Member
- Inquiry Now
X41F PFA FULL LINED PLUG VALVE Description
PFA Lined Plug Valve Flange type for corrosion medium
Technical Specification
Design and Manufacture Standard:ASME B16.34, HG/T 3704
Face-to-face Dimension: ASME B16.10 , GB/T 12221
Flange Standard: ASME B 16.5 ,GB/T 9119 ,DIN ,JIS
Inspection and Testing: API 598, GB/T 13927
Product Specification
Body Material:WCB, ASTM A395 , CF8 ,CF8M
Lining Material: PTFE , PFA, FEP
Nominal Diameter: 1/2"-14"(DN15~DN350)
Pressure Range: Class150 , Class300 , PN10 , PN16
Operation Method: Manual , Worn gear ,Electric ,Pneumatic actuator
| SIZE | 1/2"-14"(DN15~DN350) |
|---|---|
| BODY MATERIAL | WCB, ASTM A395 , CF8 ,CF8M |
| PRESSURE | Class150 , Class300 , PN10 , PN16 |
