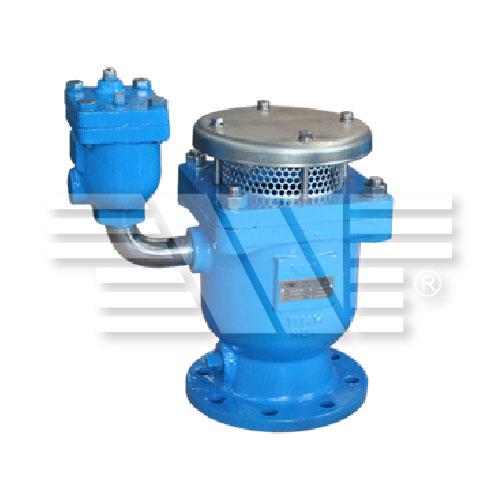

Air Release Valve

Air Release Valve
  • Model Number: ARV
  • Brand Name: TWT
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 100
  • Supply Capacity: 10000/month
  • Payment: T/T, D/P, L/C, Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

ARV Air Release Valve Description

Air Release Valves are used to release the air that are formed in pipelines. Steady air release can avoid pressure surge and protect pipe lines from damaging. The Air Release Valve can release air when pipes are filled with water, and get rid of negative pressure when such vacuum or negative pressure exists. Air in the water lines can cause many problems, the main one speeding up the process of corrosion (Causing high costs in the maintenance of the pipeline).


The exhaust process is smooth, can prevent the occurrence of pressure fluctuations or other destructive phenomena. Air can be discharged in the pipeline when the water is filled with water, and can be evacuated or negative pressure in the pipeline, such as the water column separation conditions will be automatically opened, into the pipeline to eliminate negative pressure.


High speed exhaust gas flow, and even the high speed airflow mixed with water mist will not cause the exhaust port to be closed in advance. The vent is closed only after the air is completely discharged.

At any time, as long as the system pressure is lower than atmospheric pressure, such as the occurrence of water column separation phenomenon, the air valve will immediately open the system into the air, to prevent the emergence of negative pressure in the system. At the same time, the system emptying time in a timely manner can accelerate the emptying rate.

Application Water Industrial Usage, Industrial Usage
Pressure Pn1.0 ~ 2.5MPa
Temperature of Media -10~120℃
Structure Air Release
Material Cast Iron, Ductile Iron
Media Water Oil Gas etc.
