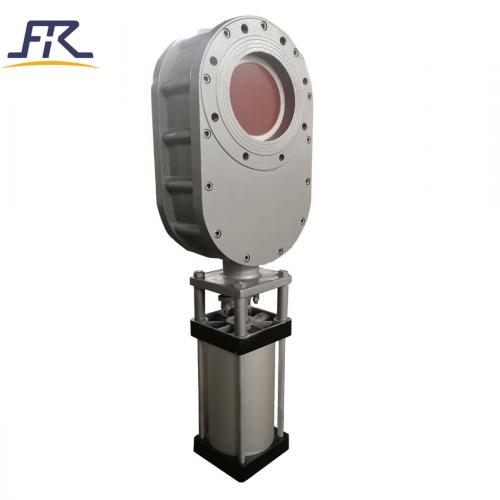

Thin Ceramic Double Disc Gate Valve

Thin Ceramic Double Disc Gate Valve
  • Model Number: FRZ674TC
  • Brand Name: FREE-VALVE
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 200set/month/month
  • Payment: TT,LC
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

FRZ674TC Thin Ceramic Double Disc Gate Valve Description

FREE-VALVE’s thin type ceramic double disc gate valve is mainly used in feeding and dumping the dry powder and the transport pipeline, which not only adopt toughening ceramic as shut off and wear out resistance material, but also design construction of pressure self-sealing and valve disc auto-rotate, so as to the sealing surface within the dry powder get more wear resistance in process of opening and closing frequently, thereby, which guarantee the high requirements of sealing performance of this valve and long working time.

Features:

1. Sealing pair is made of structural ceramics,which have perfect performance to resist wear and flushing.

2. Double-side sealing can realized due to double disc structure. Short structure length, convenient for use in short installation space.

3. It inserts spring between double valve discs to ensure self- sealing through bi-directional flexible preload pressure of spring, having characteristics of low pressure bi-directional sealing and without dust clogging phenomenon in the process of the opening and closing of valve.

4. The valve has characteristics of good sealing performance, strong abrasion resistant, open and close easily.

5. It can be installed at any position and Angle.

Technical Parameters

Flange standards ASME B16.5,GB/T9113

Nominal Pressure 1.0MPa,Class150

Size Range DN50~DN 300, NPS2 ~NPS12

Connection type Flange

Working Temperature ≤200℃

Operating Type Pneumatic, manual

Sealing surface material Engineering ceramic

Pressure test GB/T13927, API598

Face to Face GB/T12221, API609



Applications

1. Power plant ash handling system.

2. Cement industry-dry powders’ conveying and dumping.

3. Dressing works-dry powder materials’ selection and conveying.
