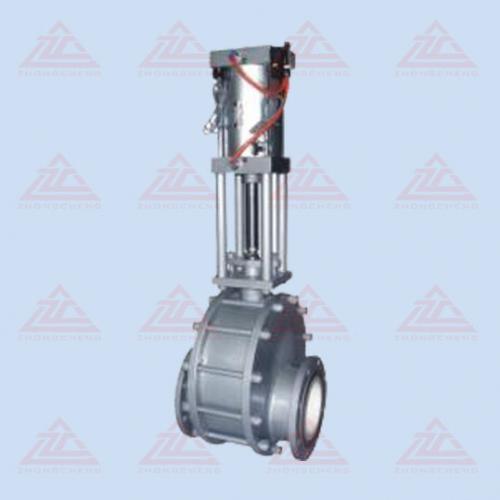

Pneumatic ceramic double-disc gate valve

Pneumatic ceramic double-disc gate valve
  • Model Number: WZ644TC-150LB
  • Brand Name: ZC
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1 SET
  • Supply Capacity: 5000/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

WZ644TC-150LB Pneumatic ceramic double-disc gate valve Description

Structural Features:

1.Use a cylinder as the actuator to drive the gate directly the gate directly to move up and down, with fast opening/closing.

2.The double gates adopt floating connection to produce reliable one-way seal under the medium pressure action. Also the floating connection can drive the gate to rotate up in opening/closing due to misalignment of axial lines so that the friction grains between the valves’s  gate and seat are distributed evenly to produce no linear abrasion,  thus improving its service life greatly.

3.Sealing surfaces of the valve’s body and gate are lined with anti-wear ceramics,with excellent resistance to abrasion.

4.Being ceramics, it’s easy for transportation, installation and maintenance.

Working principle

When the cylinder drives the gate to move downwards through the valve’s stem, sealing surfaces of the valve’s gate and body will be engaged to cut off the channel, namely, closing; the other way around is opening.

Materials for main parts


Item



Name



Material



Item



Name



Material





1



Body



WCB



7



Middle body



WCB





2



Plate



Composite engineering ceramic



8



Packing



Flexible Graphite





3



Seat



Composite engineering ceramic



9



Packing gland



2Cr13





4



Stem



2Cr13



10



Bracket



Q235





5



Stud



35CrMoVA



11



Pneumatic device





6



Nut



25




Application specification


Design and manufacture



CB/T12224





Connection end dimension



Structural length



Manufacturer’s standard





Flange dimension



JB/T 79.1





Inspection and test



GB/T 9092





Material



Carbon steel



GB/T 12229





Stainless steel



GB/T 12230





Mark



GB/T 12220





Supply



GB/T 12252




Installation, Use and Maintenance;

1.Before installation, it’s necessary to clean the valve and remove possible defects caused in the transportation process.

2.Check carefully whether marks and the nameplate on the valve meet operating requirements.

3.This valve can be installed on pipelines at any angle.

4.This valve shall be fully open or fully closed in running and not be used as a throttle valve, or else its sealing surfaces will be washed and get worn faster.

5.For long-term storage, it shall be stored in a dry and ventilated room with periodic check to avoid rust.

6.Knocking shall be avoided in the transportation process.
