JC,JCK motor water intake pump

JC,JCK motor water intake pump
  • Model Number: 400JCK550-17
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1set
  • Supply Capacity: 200sets per month/month
  • Payment: T/T in advance
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

400JCK550-17 JC,JCK motor water intake pump Description

Water intake pump

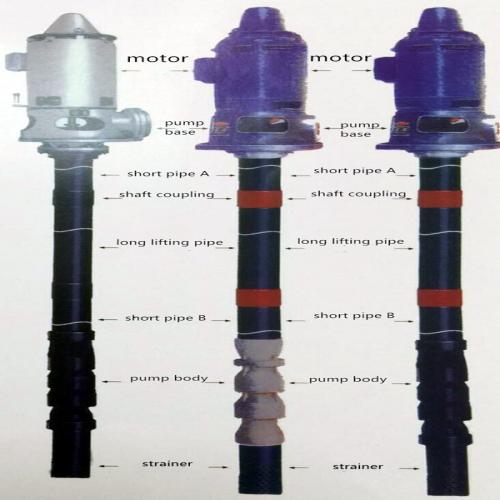

JC and JCK deep well pumps are devices that lift groundwater from wells to the surface. It can be used for water supply, domestic water intake, mine drainage, and farmland irrigation for industrial and mining enterprises. Its characteristic is that it consists of two types of impellers: closed and semi open, which can be used for various purposes. It has excellent performance, wide applicability, compact structure, and convenient installation, maintenance, and use

2. Product standards:

JC and JCK long shaft deep well pump products comply with:

JB/T 3564 Types and Basic Parameters of Long Axis Centrifugal Deep Well Pumps

JB/T 3565 Long Axis Centrifugal Deep Well Pump Efficiency

JB/T 443 Technical Conditions for Long Axis Centrifugal Deep Well Pumps

Equivalent standards.

3. Working conditions:

The water pumped should be free of any oil, with a sand content of no more than 0.01% (by weight), neutral in water quality, pH 6.5-8.5, temperature not exceeding 40 ℃, hydrogen sulfide content not exceeding 1.5mg/L, and the wellbore should be upright without bidirectional bending

flow rate 10-900m3/h
head 32-170m
pump material cast iron
impeller closed impeller or semi-open impeller
