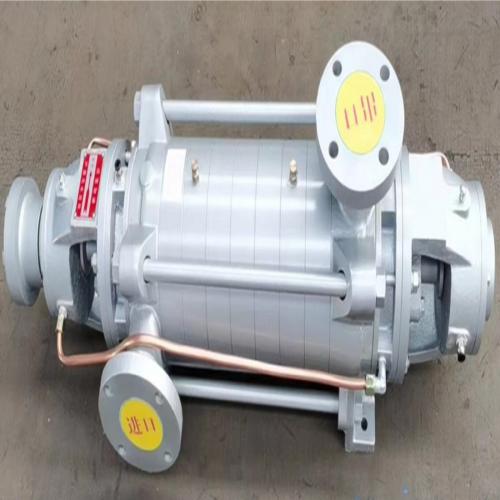

High temperature multistage centrifugal water pump for steam recovery
- Model Number: ZQR-18
- Brand Name: kenshine-pump
- Place of Origin: Shanghai, China
- Minimum Order Quantity: 1set
- Supply Capacity: 300Sets per month/month
- Payment: T/T in advance
- MemberShip: Free Member
- Inquiry Now
ZQR-18 High temperature multistage centrifugal water pump for steam recovery Description
High temperature water pump for steam recovery
high temperature and high pressure water pumps, steam high-temperature condensate water recovery pumps, steam recovery pumps, steam recovery pumps, high-temperature and high-pressure water pumps, high-temperature water pumps,
The mechanical shaft seal must not be leak water or oil;
Pressure up to 25bar, temperature up to 2300C
Durable, small size, low in noise, and easy to maintain.
Commonly used for water supply pressurization, boiler water replenishment, steam condensate recovery, high-temperature water transportation, high-temperature and high-pressure water pumps for boilers, multi-stage high-temperature water pumps, steam recovery water pumps, steam condensate dedicated pumps, steam recovery pumps
1. The pressure supporting components of the pump are thickened and the pump
casing is made of ductile iron, which has strong pressure supporting capacity.
2. The flow components of the pump are optimized and designed using CFD flow field
analysis technology, resulting in high efficiency.
3. The static seal between the inlet, middle, and outlet sections of the pump adopts a
metal seal and an O-ring dual channel seal. The pump shaft seal adopts an imported
mechanical seal, which is safe and reliable.
4. The rotor adopts two balancing processes of static and dynamic, strictly controlling
the rotor's weight, ensuring stable pump operation and low vibration.
5. The bearing is directly installed on the pump shaft to reduce assembly errors. The
bearing adopts an enlarged design, with strong bearing capacity and long service life.
6. The shaft is forged with high-quality heat-resistant chromium molybdenum alloy
steel, which has undergone multiple heat treatments, non-destructive testing, and
precision processing. It has high precision, good rigidity, and good stability during high
7. The pump is designed for high-temperature condensate recovery, using corrosion-
resistant, high-temperature resistant, and cavitation resistant materials. A first stage
impeller is added, which has better corrosion and cavitation resistance. The maximum
operating temperature can reach 220
0C, and the maximum working pressure can reach
8. Adopting a unique shaft shoulder positioning structure, the impeller positioning is
more reliable and safe to operate. Suitable for high-temperature condensate recovery,
boiler water supply, and can also be used for water supply and drainage in factories,
cities, and mines.
1. The pump structure is sturdy, and the pump casing has undergone water pressure
testing. It adopts a mechanical shaft seal, which has a good leak prevention effect
2. The moving impellers are all balanced and calibrated, and will not vibrate during
3. Through special design, the operating temperature can reach 220
degree celsius and the maximum pressure can reach 30KG/CM2
4. The product has excellent performance and reliable quality.
