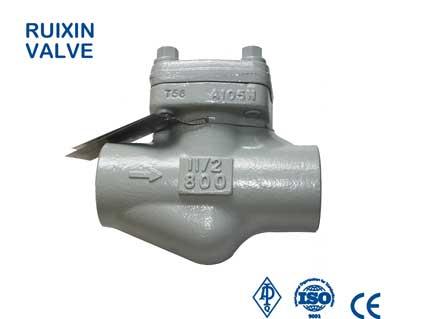

Forging Thread Check Valve 800LB

Forging Thread Check Valve 800LB
  • Model Number: C311
  • Brand Name: RXVAL
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 100Ton/month
  • Payment: T/T,L/C,Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

C311 Forging Thread Check Valve 800LB Description

Product DetailsSize

1/2 inch ~ 2 inch



Standard Connections

NPT,BSP,SW,BW



Material

Body/ Bonnet: A105, A350 LF2 , A182 F11, F22, A182 F304, F316 , F316L. A182 F51. Monel, 20# Alloy, Etc

Seat: A105+13CR / A105+STELLITE 6,ETC

Stem: A182 F6(13CR) / A182 F304/F316

Trim: NO.1 ‐ NO.14



Features And Benefits

Bolted Bonnet

Full Bore

Swing or Lift Type



Standard

Design & Manufactures: API 602

Face To Face :ANSI B16.10

Screwed Ends To ASME B1.20.1 , BW Ends To ANSI B16.25 ,SW Ends to ASME B16.11

Checking & Test : API 598

Pressure-Temperature: ASME B16.34

NACE MR-01-75



Other sizes and pressure classes available. Contact the company for specifications.
