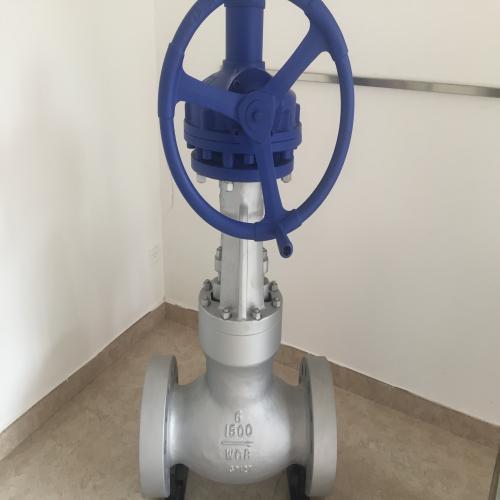

flanged type BS1873 globe valve Description

Product name: globe valve.

Type:Wedge Globe Valve Full port design
OS&Y, outside and screw
Bolted bonnet type,pressure sealed type,Y type.
Design: BS1873.
Material:Available in Forging for NPS ≤ 2 (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5,F904), Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2,WCC,WC5,C5,WC6,WC9,WC11,WC12,),CD-4MCU,SS2205 . Monel, Inconel, Hastelloy B61,B62,copper,Bronze etc.
Nominal size: 2”-32” Inch.
Nominal class: CLASS 800LB, 150LB, 300LB,600LB,900LB,1500LB, 2500LB

HS Code: 84818040
End Connection: RF flange.Butt Welded connection.
Face to face: ASME B16.10.
Test and inspection: API 598.
Operation: Lever type,Gear Operated.electric actuator, pneumatic actuator,hydraulic actuator etc.

Standard: ASME B16.34,BS1873
