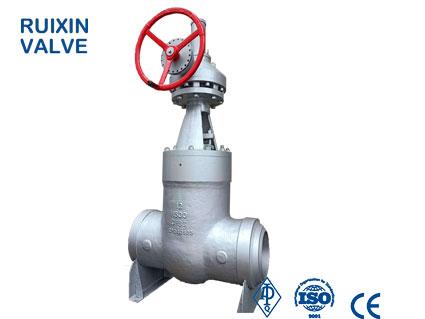

G115 API Pressured Sealed Seat Gate Valve with BW Ends Description

Product DetailsSize

2“ - 20”



Pressure Rating

900 LB- 2500 LB



Standard Connections

BW



Material

Body/Bonnet: A216WCB,WCC,A217 WC6,WC9,C5,C12,A352 LCB,LCC,A351 CF8, CF8M, CF3,CF3M,CF8C,CN7M, ETC

Seat: A105+13CR / A105+STELLITE 6,ETC

Stem: A182 F6(13CR) / A182 F304/F316

Trim: NO.1 ‐ NO.14



Features And Benefits

Pressure Sealed Bonnet

Full Bore

Rising Stem

Flexible Wedge Or Solid Wedge

Operated By Handwheel,Gear,Electric, Pneumatic Actuator



Standard

Design & Manufacturer: API 600

Face To Face :ANSI B16.10

BW ENDS to ANSI B16.25

Inspection standard: API598

NACE MR-01-75



Other sizes and pressure classes available. Contact the company for specifications.
