Wenzhouxidelong valveco,.Ltd was founded in 2007, main in producing and supplying products like ball valve, check valve, gate valve and so on, our products are selled to Europe, America, Southeast Asia and other markets.

300LB Disco Lift Wafer Stainless Steel Check Valve Metal Seat

300LB Disco Lift Wafer Stainless Steel Check Valve Metal Seat
  • Model Number: H71H
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

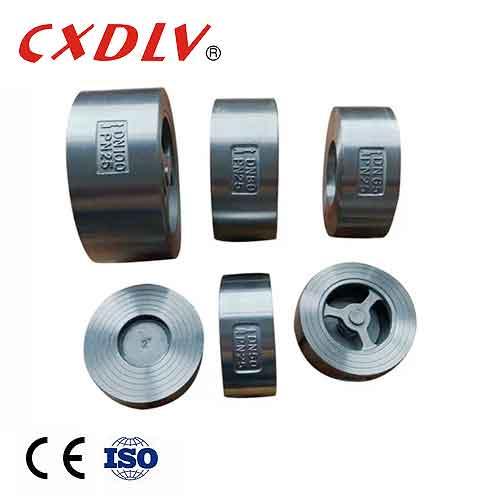

H71H 300LB Disco Lift Wafer Stainless Steel Check Valve Metal Seat Description

Check Valves Lift check valves are particularly suitable for high-pressure service where velocity of flow is high. In lift Check Valves,the disc is precisely guided and fits perfectly into the dashpot.Lift Check Valves are suitable for installation in horizontal or vertical pipe-lines with upward flow.

Flow to lift Check Valves must always enter below the seat.As the flow enters, the piston or ball is raised within guides from the sear by the pressure of the upward flow. When the flow stops or reverses, the piston or ball is forced onto the seat of the valve by both the backflow and gravity.


Swing Check Valve has a flat disc that pivots or swings about a hinge pin. They are low cost, and have low head loss characteristics when fully open. But because of the long stroke and inertia of the disc, the traditional swing check valve may slam in vertical pipe installations. These valves are therefore sometimes outfitted with a lever and weight accessoryy. They can handle liquids with solids such as wastewater.

    Check Valve Features

XIDELONG H71H LIFT CHECK VALVEModel NoH71HTypeNon-return ValveMOQ1 SetApplicable StandardASMEPort SizeDN15~DN300End Connection WaferWorking PressurePN16~PN64.150LB~300LBMediumWater,Oil,Gas,AirBody MaterialStainless SteelTemp.of Medium-20℃~200℃Trim MaterialSS201/SS304CertificatePED,ISOLogo Laser MarkingAvailable for freeWarranty 1 Year (12 Months
